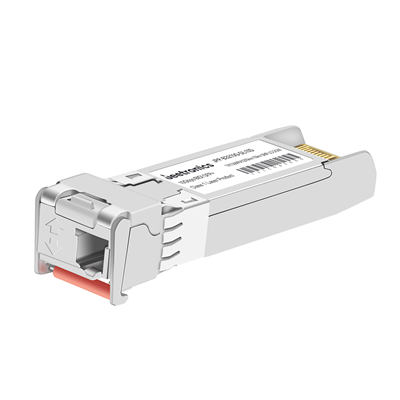

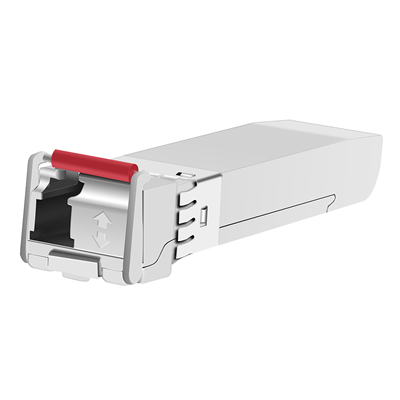

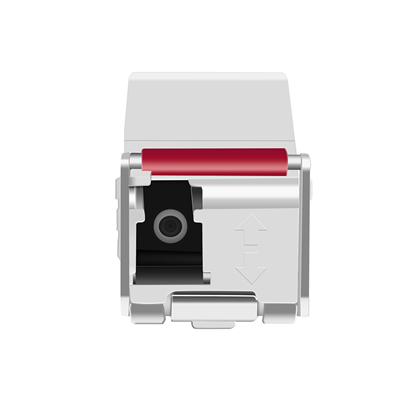

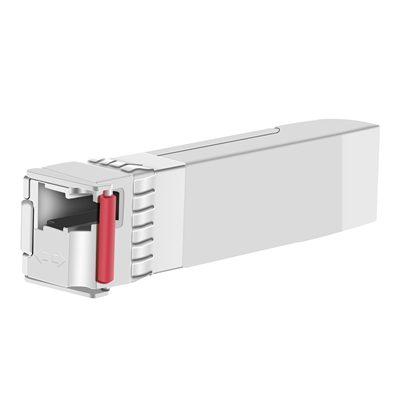

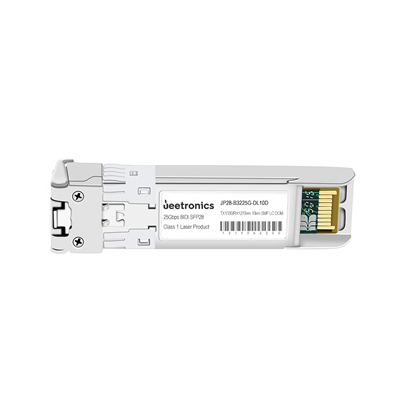

SFP28 25Gbps 1330nm&1270nm SMF 10KM Simplex LC Optical Transceiver

JP28-B3225G-DL10D is a MSA compliant 25Gbps SFP28 Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP28 Footprint
  • Supports upto 25Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 10KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP28 MSA Specification
  • Low power consumption

P/N JP28-B3225G-DL10D
Form Factor SFP28
Standard & protocal 25GBASE BX
Data Rate 25Gbps
WaveLength 1330nm&1270nm
Media SMF
Reach 10KM
Interface Simplex LC
Tx Source DFB
Rx Source PIN
Tx Power -2.0~+4.0dBm
Rx Power ≦-13.0dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP28-B3225G-DL10D 25Gbps 1330nm&1270nm  More 10KM Simplex LC SMF -2.0~+4.0dBm ≦-13.0dBm Tc/Ti
JP28-B2325G-DL10D 25Gbps 1270nm&1330nm  More 10KM Simplex LC SMF -2.0~+4.0dBm ≦-13.0dBm Tc/Ti
