- Hot-Pluggable SFP+ Footprint
- Supports upto 14Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 20~25KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP+ MSA Specification
- Low power consumption

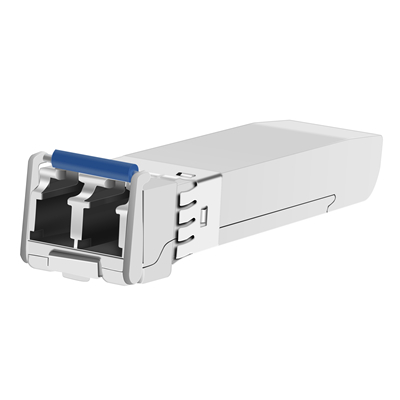

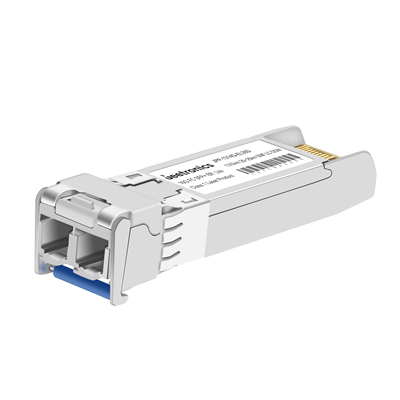

| P/N | JPP-1314G-EL30D |
| Form Factor | SFP+ |
| Standard & protocal | 16GBASE ER Lite |
| Data Rate | 14Gbps |
| WaveLength | 1310nm |
| Media | SMF |
| Reach | 20~25KM |

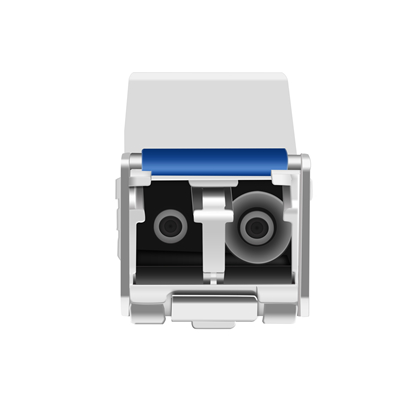

| Interface | Duplex LC |
| Tx Source | EML |
| Rx Source | APD |
| Tx Power | -5～+0.5dBm |
| Rx Power | ≦-12.0dBm |
| Temp. | Tc |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JPP-1314G-EL30D | 14Gbps | 1310nm More | 20~25KM | Duplex LC | SMF | -5～+0.5dBm | ≦-12.0dBm | Tc |
| JPP-8514G-VL01D | 14Gbps | 850nm More | 100M | Duplex LC | MMF | -7.8～-1dBm | ≦-12.0dBm | Tc |
| JPP-1314G-DL10D | 14Gbps | 1310nm More | 10KM | Duplex LC | SMF | -4.0～+2.0dBm | ≦-12.0dBm | Tc |
| JPP-1314G-EL40D | 14Gbps | 1310nm More | 40KM | Duplex LC | SMF | -1～+3dBm | ≦-14.0dBm | Tc |
