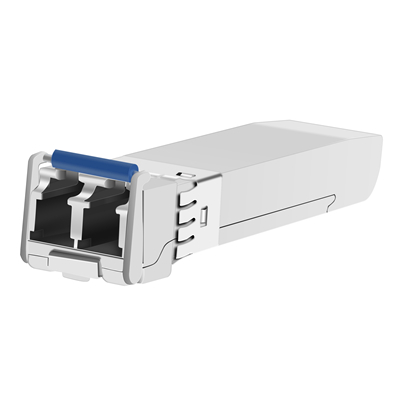

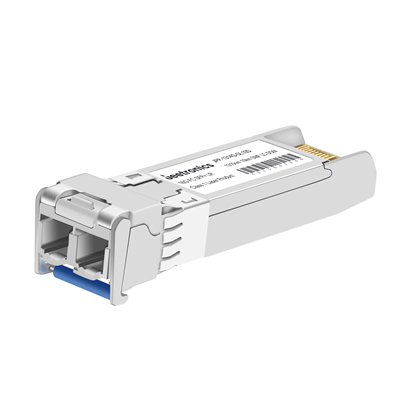

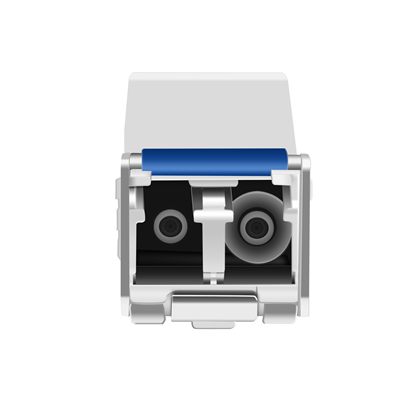

SFP+ 14Gbps 1310nm SMF 10KM Duplex LC Optical Transceiver

JPP-1314G-DL10D is a MSA compliant 14Gbps SFP+ Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP+ Footprint
  • Supports upto 14Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 10KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP+ MSA Specification
  • Low power consumption

P/N JPP-1314G-DL10D
Form Factor SFP+
Standard & protocal 16GBASE LW
Data Rate 14Gbps
WaveLength 1310nm
Media SMF
Reach 10KM
Interface Duplex LC
Tx Source DFB
Rx Source PIN
Tx Power -4.0~+2.0dBm
Rx Power ≦-12.0dBm
Temp. Tc
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JPP-1314G-DL10D 14Gbps 1310nm  More 10KM Duplex LC SMF -4.0~+2.0dBm ≦-12.0dBm Tc
JPP-8514G-VL01D 14Gbps 850nm  More 100M Duplex LC MMF -7.8~-1dBm ≦-12.0dBm Tc
JPP-1314G-EL30D 14Gbps 1310nm  More 20~25KM Duplex LC SMF -5~+0.5dBm ≦-12.0dBm Tc
JPP-1314G-EL40D 14Gbps 1310nm  More 40KM Duplex LC SMF -1~+3dBm ≦-14.0dBm Tc
