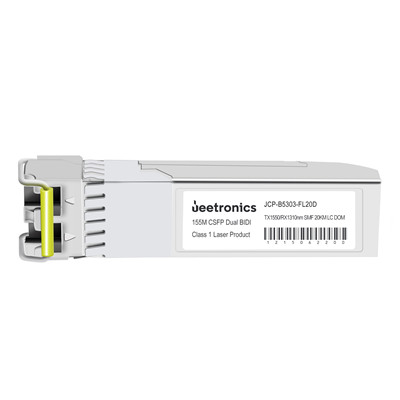

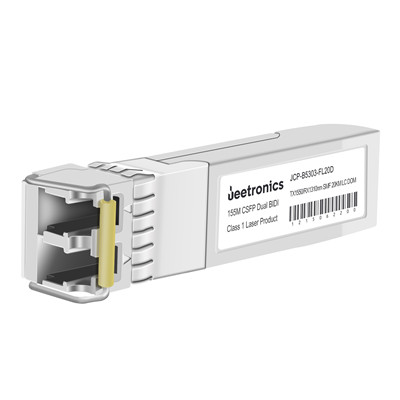

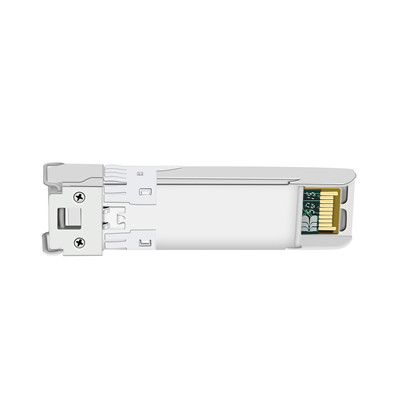

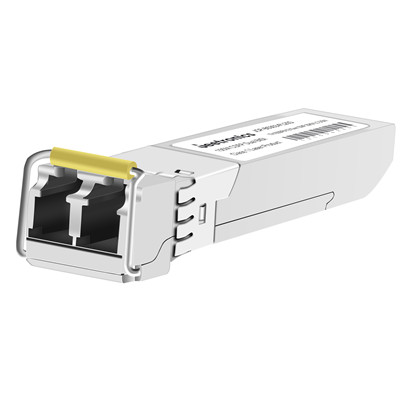

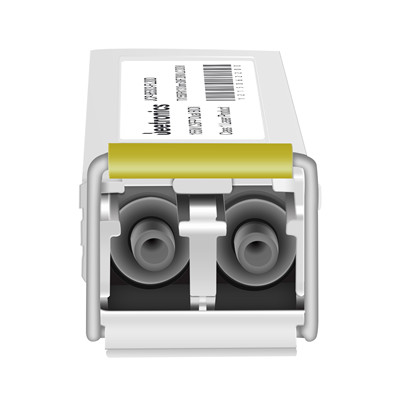

CSFP 155Mbps TX1550/RX1310nm SMF 20KM Duplex LC Optical Transceiver

JCP-B5303-FL20D is a MSA compliant 155Mbps CSFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable CSFP Footprint
  • Supports upto 155Mbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 20KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with CSFP MSA Specification
  • Low power consumption

P/N JCP-B5303-FL20D
Form Factor CSFP
Standard & protocal 100BASE 2BX
Data Rate 155Mbps
WaveLength TX1550/RX1310nm
Media SMF
Reach 20KM
Interface Duplex LC
Tx Source FP
Rx Source PIN
Tx Power -15~-8dBm
Rx Power ≦-34dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JCP-B5303-FL20D 155Mbps TX1550/RX1310nm  More 20KM Duplex LC SMF -15~-8dBm ≦-34dBm Tc/Ti
JCP-B3503-FL20D 155Mbps TX1310/RX1550nm  More 20KM Duplex LC SMF -15~-8dBm ≦-34dBm Tc/Ti
