Home > Active Pluggable Transceivers > SFP > 1.25G SFP > JP-1524-DL80D
JP-1524-DL80D JP-1524-DL80D JP-1524-DL80D JP-1524-DL80D

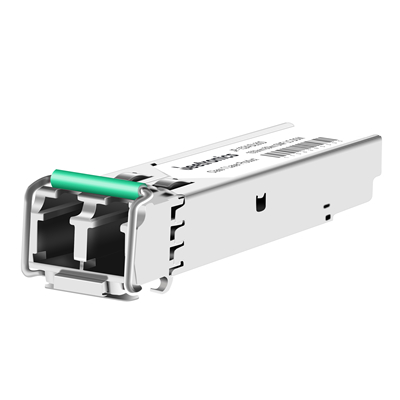

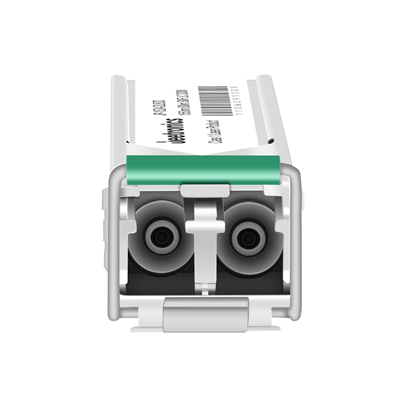

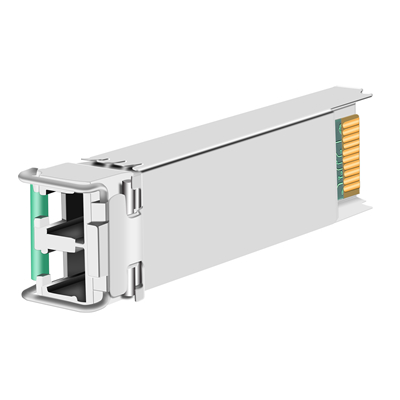

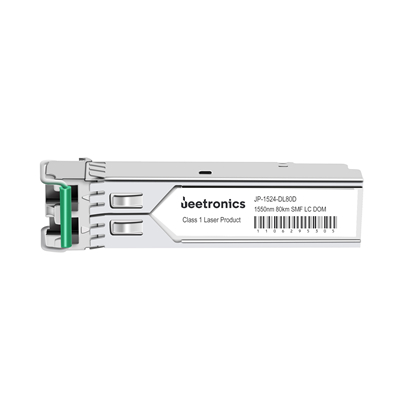

SFP 1.25Gbps 1550nm SMF 80KM Duplex LC Optical Transceiver

JP-1524-DL80D is a MSA compliant 1.25Gbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • more
  • Hot-Pluggable SFP Footprint
  • Supports upto 1.25Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 80KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP MSA Specification
  • Low power consumption

P/N JP-1524-DL80D
Form Factor SFP
Standard & protocal 1000BASE-ZX
Data Rate 1.25Gbps
WaveLength 1550nm
Media SMF
Reach 80KM
Interface Duplex LC
Tx Source DFB
Rx Source PIN
Tx Power -2~+3dBm
Rx Power ≦-24dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP-1524-DL80D 1.25Gbps 1550nm  More 80KM Duplex LC SMF -2~+3dBm ≦-24dBm Tc/Ti
JP-0824-VL05D 1.25Gbps 850nm  More 550M Duplex LC MMF -9~-3dBm ≦-17dBm Tc/Ti
JP-1324-FL2D 1.25Gbps 1310nm  More 2KM Duplex LC MMF -9~-3dBm ≦-17dBm Tc/Ti
JP-1324-FL20D 1.25Gbps 1310nm  More 20KM Duplex LC SMF -9~-3dBm ≦-24dBm Tc/Ti
JP-1324-DL40D 1.25Gbps 1310nm  More 40KM Duplex LC SMF -2~+3dBm ≦-24dBm Tc/Ti
JP-1524-DL40D 1.25Gbps 1550nm  More 40KM Duplex LC SMF -5~0dBm ≦-24dBm Tc/Ti
JP-1524-DL120D 1.25Gbps 1550nm  More 120KM Duplex LC SMF 0~+5dBm ≦-32dBm Tc/Ti
