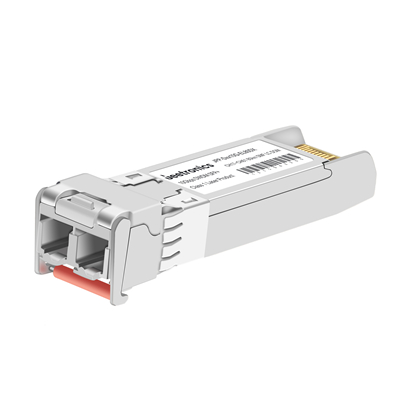

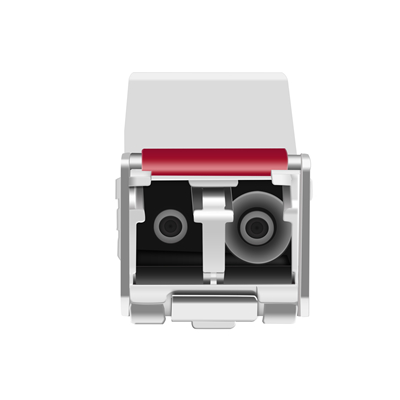

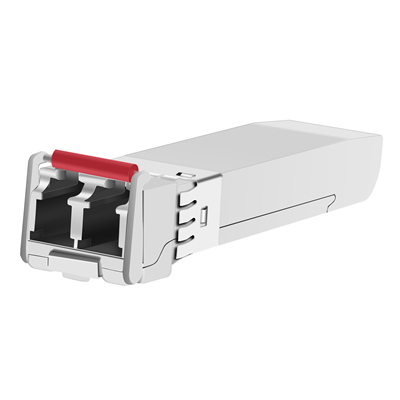

- Hot-Pluggable SFP+ Footprint
- Supports upto 10Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 80KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP+ MSA Specification
- Low power consumption
| P/N | JPP-Dxx10G-EL80DX |
| Form Factor | SFP+ |
| Standard & protocal | 10GBASE DWDM |
| Data Rate | 10Gbps |
| WaveLength | DWDM CH17~CH61 |
| Media | SMF |
| Reach | 80KM |
| Interface | Duplex LC |
| Tx Source | EML |
| Rx Source | APD |
| Tx Power | -1~+5dBm |
| Rx Power | ≦-23dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JPP-Dxx10G-EL80DX | 10Gbps | DWDM CH17~CH61 More | 80KM | Duplex LC | SMF | -1~+5dBm | ≦-23dBm | Tc/Ti |
| JPP-Dxx10G-EL40D | 10Gbps | DWDM CH17~CH61 More | 40KM | Duplex LC | SMF | -1～+4dBm | ≦-16dBm | Tc/Ti |
| JPP-Dxx10G-EL40DX | 10Gbps | DWDM CH17~CH61 More | 40KM | Duplex LC | SMF | -1~+4dBm | ≦-16dBm | Tc/Ti |
| JPP-Dxx10G-EL80D | 10Gbps | DWDM CH17~CH61 More | 80KM | Duplex LC | SMF | -1～+5dBm | ≦-23dBm | Tc/Ti |
| JPP-Dxx10G-EL100D | 10Gbps | DWDM CH17~CH61 More | 100KM | Duplex LC | SMF | 0～+5dBm | ≦-25dBm | Tc/Ti |
| JPP-Dxx10G-EL100DX | 10Gbps | DWDM CH17~CH61 More | 100KM | Duplex LC | SMF | 0~+5dBm | ≦-25dBm | Tc/Ti |
