- Hot-Pluggable SFP+ Footprint
- Supports upto 10Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 100KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP+ MSA Specification
- Low power consumption

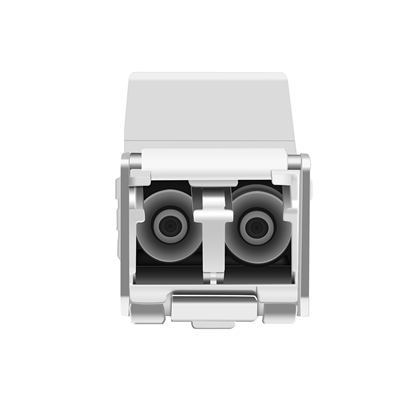

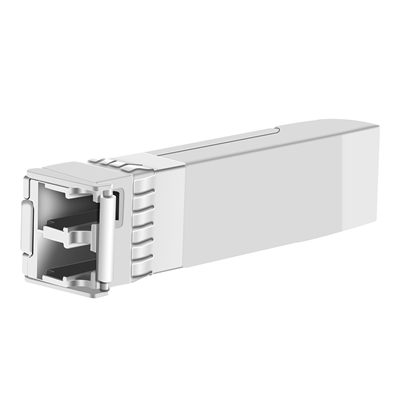

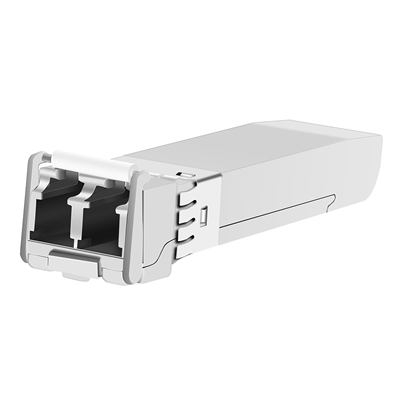

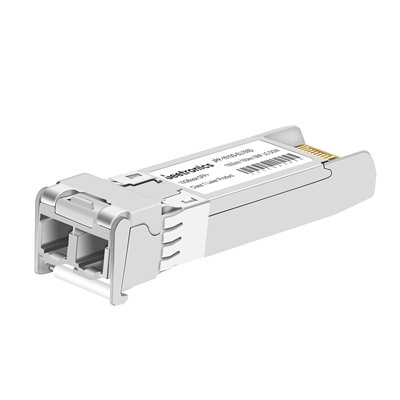

| P/N | JPP-1510G-EL100D |
| Form Factor | SFP+ |
| Standard & protocal | 10GBASE EZR |
| Data Rate | 10Gbps |
| WaveLength | 1550nm |
| Media | SMF |
| Reach | 100KM |
| Interface | Duplex LC |
| Tx Source | EML |
| Rx Source | APD |
| Tx Power | +1~+5dBm |
| Rx Power | ≦-24dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JPP-1510G-EL100D | 10Gbps | 1550nm More | 100KM | Duplex LC | SMF | +1~+5dBm | ≦-24dBm | Tc/Ti |
| JPP-8510G-VL03D | 10Gbps | 850nm More | 300M | Duplex LC | MMF | -6~-1dBm | ≦-11.1dBm | Tc/Ti |
| JPP-1310G-FL02D | 10Gbps | 1310nm More | 220M | Duplex LC | MMF | -7.3~-1dBm | ≦-11.1dBm | Tc/Ti |
| JPP-1310G-FL2D | 10Gbps | 1310nm More | 2KM | Duplex LC | SMF | -8.2~+0.5dBm | ≦-12.6dBm | Tc/Ti |
| JPP-1310G-DL10D | 10Gbps | 1310nm More | 10KM | Duplex LC | SMF | -6~-1dBm | ≦-12.6dBm | Tc/Ti |
| JPP-1310G-DL10DX | 10Gbps | 1310nm More | 10KM | Duplex LC | SMF | -6~-1dBm | ≦-12.6dBm | Tc/Ti |
| JPP-1310G-DL20D | 10Gbps | 1310nm More | 20KM | Duplex LC | SMF | -4.5~+1dBm | ≦-12.6dBm | Tc/Ti |
| JPP-1310G-DL40D | 10Gbps | 1310nm More | 40KM | Duplex LC | SMF | -1~+4dBm | ≦-16dBm | Tc/Ti |
| JPP-1510G-EL40D | 10Gbps | 1550nm More | 40KM | Duplex LC | SMF | -1~+5dBm | ≦-16dBm | Tc/Ti |
| JPP-1510G-EL40DX | 10Gbps | 1550nm More | 40KM | Duplex LC | SMF | -1～+5dBm | ≦-16dBm | Tc/Ti |
| JPP-1510G-EL80D | 10Gbps | 1550nm More | 80KM | Duplex LC | SMF | 0~+5dBm | ≦-23dBm | Tc/Ti |
| JPP-1510G-EL80DX | 10Gbps | 1550nm More | 80KM | Duplex LC | SMF | 0～+5dBm | ≦-23dBm | Tc/Ti |
