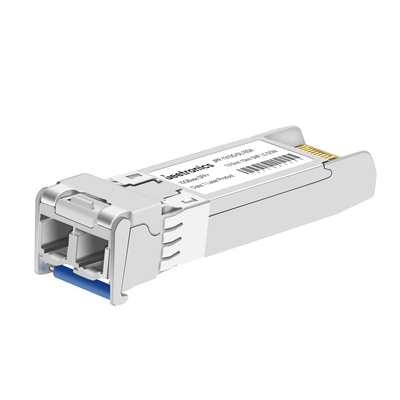

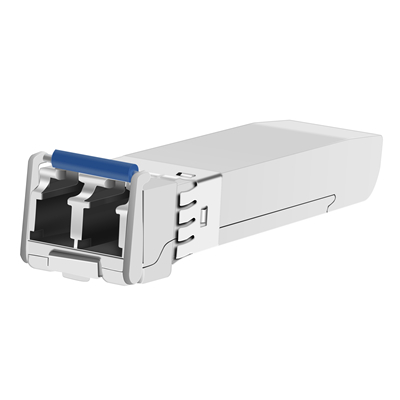

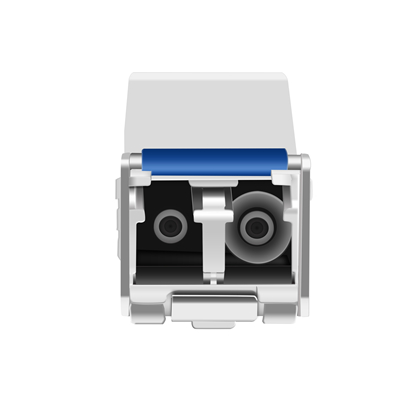

SFP+ 10Gbps 1310nm SMF 10KM Duplex LC Optical Transceiver

JPP-1310G-DL10DX is a MSA compliant 10Gbps SFP+ Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP+ Footprint
  • Supports upto 10Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 10KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP+ MSA Specification
  • Low power consumption

P/N JPP-1310G-DL10DX
Form Factor SFP+
Standard & protocal 10GBASE LR
Data Rate 10Gbps
WaveLength 1310nm
Media SMF
Reach 10KM
Interface Duplex LC
Tx Source DFB
Rx Source PIN
Tx Power -6~-1dBm
Rx Power ≦-12.6dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JPP-1310G-DL10DX 10Gbps 1310nm  More 10KM Duplex LC SMF -6~-1dBm ≦-12.6dBm Tc/Ti
JPP-8510G-VL03D 10Gbps 850nm  More 300M Duplex LC MMF -6~-1dBm ≦-11.1dBm Tc/Ti
JPP-1310G-FL02D 10Gbps 1310nm  More 220M Duplex LC MMF -7.3~-1dBm ≦-11.1dBm Tc/Ti
JPP-1310G-FL2D 10Gbps 1310nm  More 2KM Duplex LC SMF -8.2~+0.5dBm ≦-12.6dBm Tc/Ti
JPP-1310G-DL10D 10Gbps 1310nm  More 10KM Duplex LC SMF -6~-1dBm ≦-12.6dBm Tc/Ti
JPP-1310G-DL20D 10Gbps 1310nm  More 20KM Duplex LC SMF -4.5~+1dBm ≦-12.6dBm Tc/Ti
JPP-1310G-DL40D 10Gbps 1310nm  More 40KM Duplex LC SMF -1~+4dBm ≦-16dBm Tc/Ti
JPP-1510G-EL40D 10Gbps 1550nm  More 40KM Duplex LC SMF -1~+5dBm ≦-16dBm Tc/Ti
JPP-1510G-EL40DX 10Gbps 1550nm  More 40KM Duplex LC SMF -1~+5dBm ≦-16dBm Tc/Ti
JPP-1510G-EL80D 10Gbps 1550nm  More 80KM Duplex LC SMF 0~+5dBm ≦-23dBm Tc/Ti
JPP-1510G-EL80DX 10Gbps 1550nm  More 80KM Duplex LC SMF 0~+5dBm ≦-23dBm Tc/Ti
JPP-1510G-EL100D 10Gbps 1550nm  More 100KM Duplex LC SMF +1~+5dBm ≦-24dBm Tc/Ti
