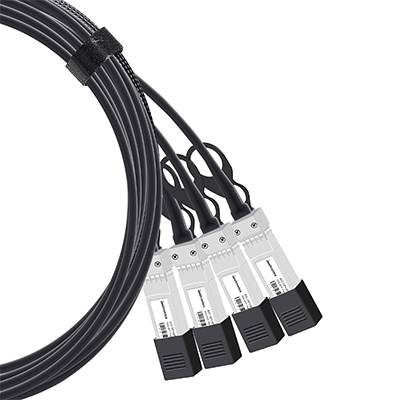

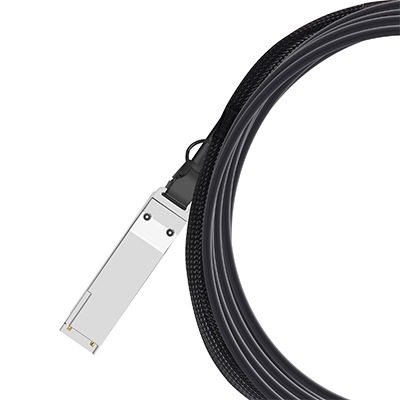

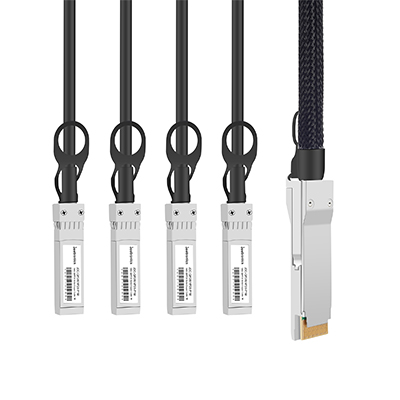

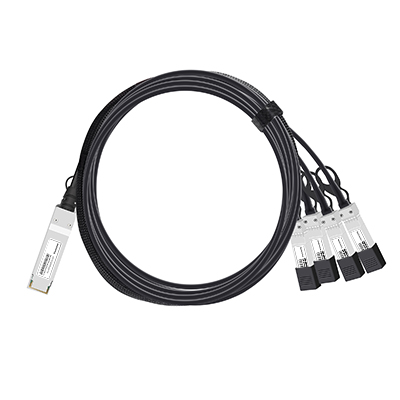

100G to 4x25G QSFP28 to 4SFP28 1M 30AWG Direct Attach Twinax Breakout Copper Cable

JDC-QP28V4P28-P1M is a MSA compliant 100G to 4x25G QSFP28 to 4SFP28 Packaged Passive Copper Cable. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-pluggable form-factor connectors
  • Supports upto 100G to 4x25G Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link length Up to 1M on Copper Cable
  • RoHS Compliant (lead free)
  • Operating Case Temperature : 0~70℃
  • Compliant with QSFP28 to 4SFP28 MSA Specification
  • Low power consumption

P/N JDC-QP28V4P28-P1M
Data Rate 100G to 4x25G
Media Copper
Formfactor QSFP28 to 4SFP28
Cable Type Passive
AWG 30
Length 1M
Opterating Temp. 0~70℃
P/N DataRate/Protocol Media Formfactor Cable Type AWG Length Opterating Temp.
JDC-QP28V4P28-P1M 100G to 4x25G Copper  More QSFP28 to 4SFP28 Passive 30 1M 0~70℃
JDC-QP28V4P28-P2M 100G to 4x25G Copper  More QSFP28 to 4SFP28 Passive 30 2M 0~70℃
JDC-QP28V4P28-P3M 100G to 4x25G Copper  More QSFP28 to 4SFP28 Passive 30 3M 0~70℃
JDC-QP28V4P28-P5M 100G to 4x25G Copper  More QSFP28 to 4SFP28 Passive 26 5M 0~70℃
