- Hot-Pluggable CFP4 Footprint
- Supports upto 103.1~112Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 10KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with CFP4 MSA Specification
- Low power consumption

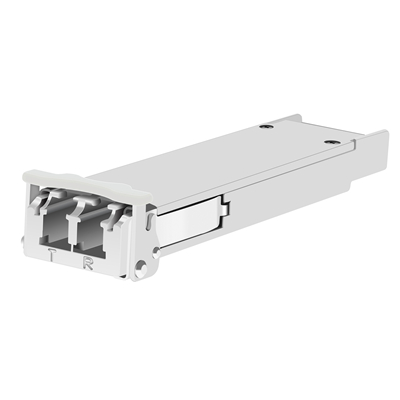

| P/N | JCP4-L100GX-DL10D |
| Form Factor | CFP4 |
| Standard & protocal | 100GBASE LR4 |
| Data Rate | 103.1~112Gbps |
| WaveLength | LAN-WDM 1294nm~1310nm |
| Media | SMF |
| Reach | 10KM |
| Interface | Duplex LC |
| Tx Source | LWDM EML |
| Rx Source | PIN |
| Tx Power | -4.3～+4.5dBm |
| Rx Power | ≦-8.6dBm |
| Temp. | Tc |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JCP4-L100GX-DL10D | 103.1~112Gbps | LAN-WDM 1294nm~1310nm More | 10KM | Duplex LC | SMF | -4.3～+4.5dBm | ≦-8.6dBm | Tc |
| JCP4-85100GX-VM01D | 103.1~112Gbps | 850nm More | 100M | MPO | MMF | -8.4～+2.4dBm | ≦-9.2dBm | Tc |
