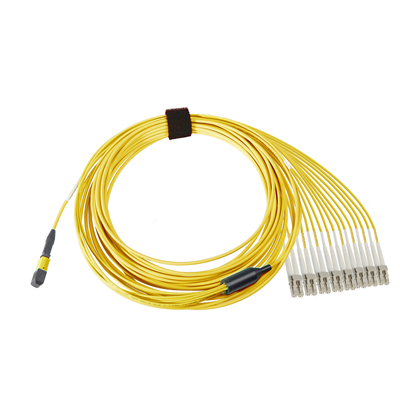

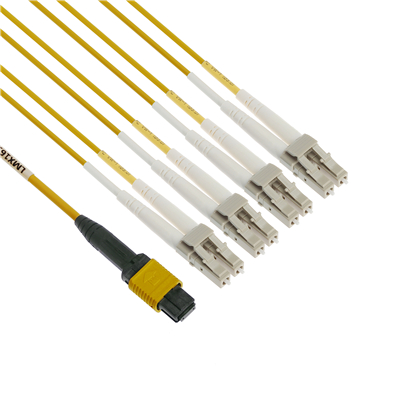

MTP to 8x LC-Dulplex OS2 62.5/125μm B 16 Fibers Single Mode xxx Meter (Custom Length) MPO/MTP Breakout Cable Elite Yellow

JMT-B16FBS2LD-xxx-EY is a high quality multifiber cable assembly with the Pre-terminated push-on/pull-off designed components that provides consistent and repeatable interconnections up to 16 fibers for today's 40G and 100G networks. It is specifically designed and custom-built to fulfill applications such as Data Center Interconnect , Storage Area Network/Fiber Channel, Parallel Optics.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP interfaces
  • Up to 16 fibers MTP/MPO per connector
  • High Density, Secure and Reliable Connection
  • High performance in IL & RL
  • Cable length custom is available upon request
  • Cable color custom is available upon request
  • Pre-terminated design, Easy-to-inplement

Fiber Mode OS2
Fiber Type 62.5/125μm

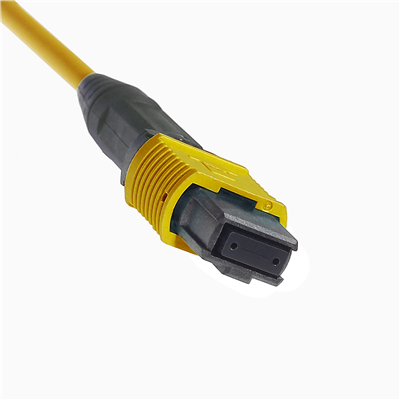

Connector A MTP
Gender A Female
Connector B /
Gender B /

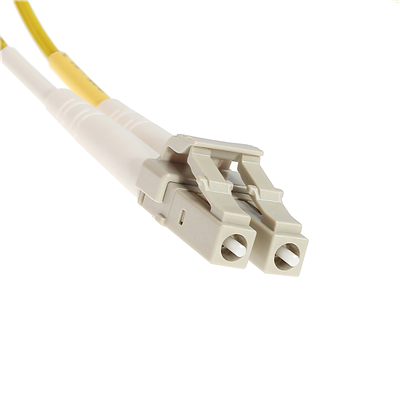

Connector B (Breakout) 8x LC-Dulplex
Gender B (Breakout) Male
Fiber cores 16
Polarity B
Grade Elite
Cable Jacket LSZH, PVC
Cable Diameter 3.0mm
Breakout 0.9/2.0mm
Breakout Length 0.5M
Color Yellow

Optical Properties

Fiber Cable
Attenuation Single Mode ≤0.32 at 1310nm
≤0.18 at 1550nm
MPO/MTP Connector
Insertion Loss (dB) Single Mode Elite: ≤0.35
Return Loss (dB) Single Mode UPC: ≥50 APC: ≥60
LC/SC/FC/ST Connector
Insertion Loss (dB) Single Mode UPC: ≤0.25 APC:≤ 0.3
Return Loss (dB) Single Mode UPC: ≥50 APC: ≥60
Durability ≤0.2 dB at 200 cycles
Operating Temprature -20°C ~ +70°C
Storage Temprature -20°C ~ +85°C
P/N Category Fiber Mode Connector A Connector B Connector B(Breakout) Fiber cores Grade Length
JMT-B16FBS2LD-xxx-EY MPO/MTP Breakout Cable OS2  More MTP / 8x LC-Dulplex 16 Elite xxx Meter (Custom Length)
JMT-B8FBS2LD-xxx-EY MPO/MTP Breakout Cable OS2  More MTP / 4x LC-Dulplex 8 Elite xxx Meter (Custom Length)
JMT-B12FBS2LD-xxx-EY MPO/MTP Breakout Cable OS2  More MTP / 6x LC-Dulplex 12 Elite xxx Meter (Custom Length)
JMP-B8FBS2LD-xxx-SY MPO/MTP Breakout Cable OS2  More MPO / 4x LC-Dulplex 8 Standard xxx Meter (Custom Length)
JMP-B12FBS2LD-xxx-SY MPO/MTP Breakout Cable OS2  More MPO / 6x LC-Dulplex 12 Standard xxx Meter (Custom Length)
JMP-B16FBS2LD-xxx-SY MPO/MTP Breakout Cable OS2  More MPO / 8x LC-Dulplex 16 Standard xxx Meter (Custom Length)
