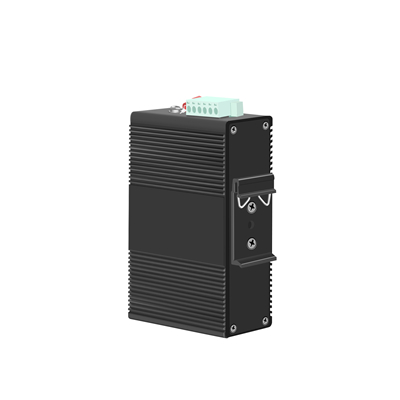

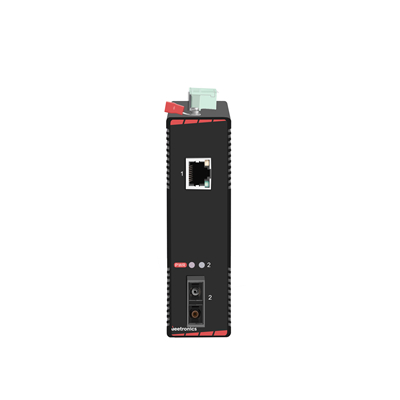

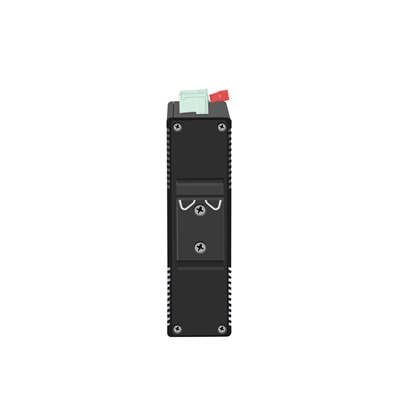

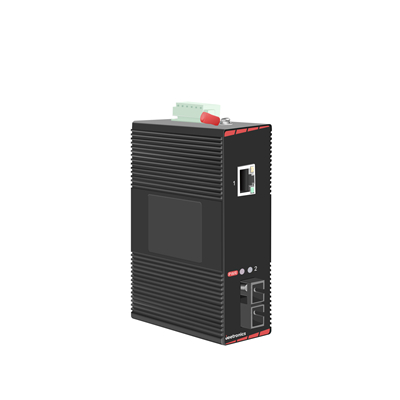

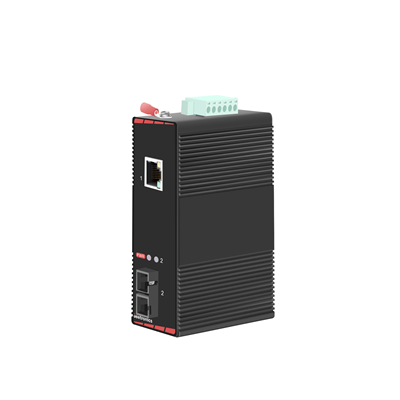

1x 10/100/1000Base-TX to 1x 1000Base-FX (1550nm SMF 100km Dual SC) Unmanaged Gigabit Ethernet Industrial Media Converter

JTGA101-15S100 is an unmanaged industrial media converter with 1x 10/100/1000Base-TX and 1x 1000Base-FX interfaces that provides reliable and cost-effective network connectivity and fiber extension in harsh industrial environments,It is specifically designed to fulfill industrial applications such as industrial automation, security, power/utility, oil and gas, mining and outdoor environment.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Complies with IEEE 802.3 ,IEEE 802.3u ,IEEE 802.3ab ,IEEE 802.3z 1000BASE-X Gigabit FiberIEEE 802.3x
  • 1x 10/100/1000Base-TX
  • 1x 1000Base-FX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Redundant Power Design
  • Power Polarity Reverse Protection
  • Overload Current Protection
  • Extends fiber distance up to 100km
  • Operating Case Temperature : -40~75°C
  • DIN-Rail or Wall Mountable
  • IP30 Corrosion resistant aluminum case

Data Rate 10/100/1000Mbps
Device Type Unmanaged
Form Factor /

Interface Characteristics

Copper Interface 1x 10/100/1000Base-TX
Fiber Interface 1x 1000Base-FX
Wavelength 1550nm
Media SMF
Distance 100km
Connector Dual SC
LED indicators PWR (power supply);
FL/A (optical link/action)
FDX (FX full duplex),TL/A (twisted pairs link/action)
100 (100M transmission rate of twisted pairs),
1000 (100M transmission rate of twisted pairs)

Technology

Standards and Protocols IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X Gigabit Fiber
IEEE 802.3x Full duplex and flow control
Processing Type Store and Forward
Flow Control Half-duplex back-pressure-and IEEE 802.3x full-duplex flow control

Power

Power Input DC 12~52V
PoE Standard /
PoE Power Budget /
Power Consumption <4W
Protection Overload current protection
Reverse polarity protection

Switch Properties

Switching Capacity 0.4G
Forwarding Rate 0.1488Mbps
MAC address table 2K
Packet Buffer 256K
Jumbo Frame 9K
Delay <3μs

Physical

Casing Mat. Aluminum, IP30
Dimensions 118 x 86 x 39mm
Installation DIN-Rail
Environmental Operating temperature : -10~55°C
Storage Temperature: -40~75°C
Relative Humidity: 5% to 97% non-condensing

Regulatory

ISO Manufactured in ISO-9001 facility
Safety & Emission CE, FCC, RoHS
EMI FCC Part 15B Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
EMS EN 61000-6-2
EN 61000-4-2 (ESD Standards)
EN 61000-4-3 (Radiated RFI Standards)
EN 61000-4-4 (Burst Standards)
EN 61000-4-5 (Surge Standards)
EN 61000-4-6 (Induced RFI Standards)
EN 61000-4-8 (Magnetic Field Standards)
Stability IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
IEC 60068-2-32 Ed (Free fall w/package)

Realiability

MTBF >50,000Hrs
P/N Category Device Type Copper Interface Fiber Interface Wavelength Media Distance Connector Power Input
JTGA101-15S100 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX 1550nm SMF 100km Dual SC DC 12~52V
JTGA101-P Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTGA101-08S05 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX 850nm MMF 550m Dual SC DC 12~52V
JTGA101-13S20 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTGA101-13S40 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTGA101-15S60 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX 1550nm SMF 60km Dual SC DC 12~52V
JTGA101-15S80 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX 1550nm SMF 80km Dual SC DC 12~52V
JTGA101-B35S20 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX TX1310/RX1550nm SMF 20km Single SC DC 12~52V
JTGA101-B53S20 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX TX1550/RX1310nm SMF 20km Single SC DC 12~52V
JTGA101-B35S40 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX TX1310/RX1550nm SMF 40km Single SC DC 12~52V
JTGA101-B53S40 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX TX1550/RX1310nm SMF 40km Single SC DC 12~52V
JTGA101-B35S60 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX TX1310/RX1550nm SMF 60km Single SC DC 12~52V
JTGA101-B53S60 Industrial Media Converter Unmanaged  More 1x 10/100/1000Base-TX 1x 1000Base-FX TX1550/RX1310nm SMF 60km Single SC DC 12~52V
