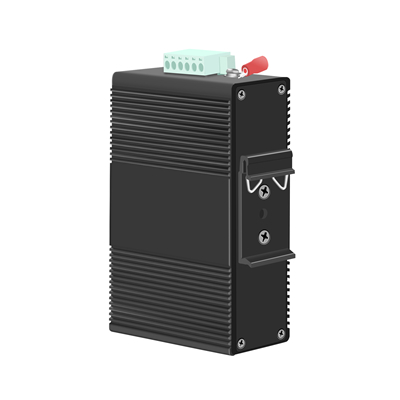

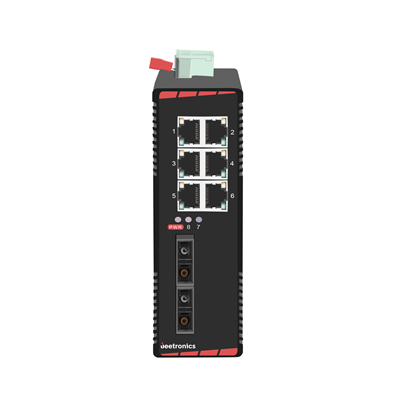

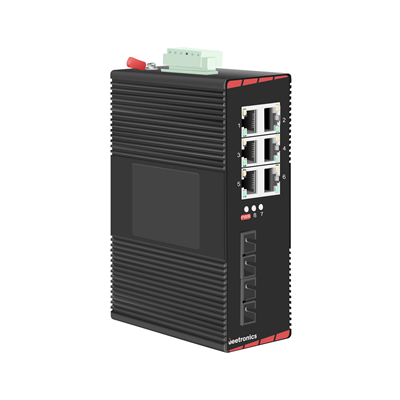

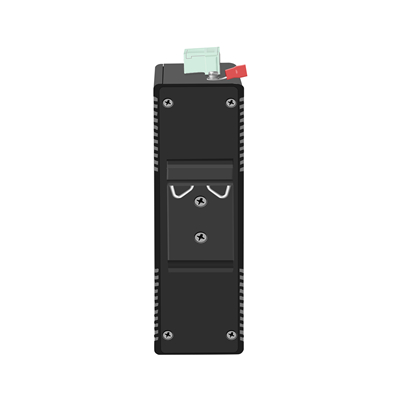

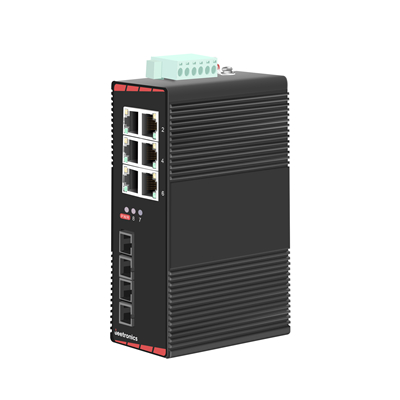

6x 10/100Base-TX to 2x 100Base-FX (1310nm SMF 20km Dual SC) Unmanaged Fast Ethernet PoE Industrial Switch

JTFA206-13S20-P is an unmanaged Fast Ethernet is equipped with 6x 10/100Base-TX (IEEE 802.3af/at PoE) and 2x 100Base-FX interfaces that provides reliable and cost-effective network connectivity and fiber extension in harsh industrial environments, It is specifically designed supporting up to 30 Watts PoE per port to fulfill industrial applications such as industrial automation, security, power/utility, oil and gas, mining and outdoor environment.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Complies with IEEE 802.3 ,IEEE 802.3u ,IEEE 802.3x ,IEEE 802.3af/at PoE
  • 6x 10/100Base-TX with IEEE 802.3af/at PoE
  • 2x 100Base-FX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Redundant Power Design
  • Power Polarity Reverse Protection
  • Overload Current Protection
  • Extends fiber distance up to 20km
  • Operating Case Temperature : -40~75°C
  • DIN-Rail or Wall Mountable
  • IP30 Corrosion resistant aluminum case

Data Rate 10/100Mbps
Device Type Unmanaged

Interface Characteristics

Copper Interface 6x 10/100Base-TX (IEEE 802.3af/at PoE)
Fiber Interface 2x 100Base-FX
Wavelength 1310nm
Media SMF
Distance 20km
Connector Dual SC
LED indicators PWR (power supply);
FL/A (optical link/action)
FDX (FX full duplex),
TL/A (twisted pairs link/action)
100 (100M transmission rate of twisted pairs),
FX (100M transmission rate of optical fiber)

Technology

Standards and Protocols IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Full duplex and flow control
IEEE 802.3af/at PoE
Processing Type Store and Forward
Flow Control Half-duplex back-pressure and IEEE 802.3x full-duplex flow control

Power

Power Input DC 12~52V
PoE Standard IEEE 802.3af/at PoE
PoE Power Budget 30W Per PoE Port
Power Consumption <4W
Protection Overload current protection
Reverse polarity protection

Switch Properties

Switching Capacity 1.6G
Forwarding Rate 0.1488Mbps
MAC address table 1K
Packet Buffer 448K
Jumbo Frame 1552/1536/bytes
Delay <3μs

Physical

Casing Mat. Aluminum, IP30
Dimensions 143 x 101 x 44mm
Installation DIN-Rail
Environmental Operating temperature : -40~75°C
Storage Temperature: -40~85°C
Relative Humidity: 5% to 95% non-condensing

Regulatory

ISO Manufactured in ISO-9001 facility
Safety & Emission CE , FCC, RoHS
EMI FCC Part 15B Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
EMS EN 61000-6-2
EN 61000-4-2 (ESD Standards)
EN 61000-4-3 (Radiated RFI Standards)
EN 61000-4-4 (Burst Standards)
EN 61000-4-5 (Surge Standards)
EN 61000-4-6 (Induced RFI Standards)
EN 61000-4-8 (Magnetic Field Standards)
Stability IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
IEC 60068-2-32 Ed (Free fall w/package)

Realiability

MTBF >50,000Hrs
P/N Category Device Type Copper Interface Fiber Interface Wavelength Media Distance Connector Power Input
JTFA206-13S20-P PoE Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTFA102-P-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTFA102-13S02-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX 1310nm MMF 2km Dual SC DC 12~52V
JTFA102-13S20-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTFA102-13S40-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTFA102-15S80-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX 1550nm SMF 80km Dual SC DC 12~52V
JTFA102-B35S20-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Tx1310nm/Rx1550nm SMF 20km Single SC DC 12~52V
JTFA102-B53S20-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Tx1550nm/Rx1310nm SMF 20km Single SC DC 12~52V
JTFA102-B35S40-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Tx1310nm/Rx1550nm SMF 40km Single SC DC 12~52V
JTFA102-B53S40-P PoE Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Tx1550nm/Rx1310nm SMF 40km Single SC DC 12~52V
JTFA104-13S02-P PoE Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX 1310nm MMF 2km Dual SC DC 12~52V
JTFA104-13S20-P PoE Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTFA104-13S40-P PoE Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTFA104-15S80-P PoE Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX 1550nm SMF 80km Dual SC DC 12~52V
JTFA104-B35S20-P PoE Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX Tx1310nm/Rx1550nm SMF 20km Single SC DC 12~52V
JTFA104-B53S20-P PoE Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX Tx1550nm/Rx1310nm SMF 20km Single SC DC 12~52V
JTFA104-B35S40-P PoE Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX Tx1310nm/Rx1550nm SMF 40km Single SC DC 12~52V
JTFA104-B53S40-P PoE Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX Tx1550nm/Rx1310nm SMF 40km Single SC DC 12~52V
JTFA005-P PoE Industrial Ethernet Switch Unmanaged  More 5x 10/100Base-TX / / / / / DC 12~52V
JTFA008-P PoE Industrial Ethernet Switch Unmanaged  More 8x 10/100Base-TX / / / / / DC 12~52V
JTFA206-P-P PoE Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTFA206-13S02-P PoE Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX 1310nm MMF 2km Dual SC DC 12~52V
JTFA206-13S40-P PoE Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTFA206-15S80-P PoE Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX 1550nm SMF 80km Dual SC DC 12~52V
