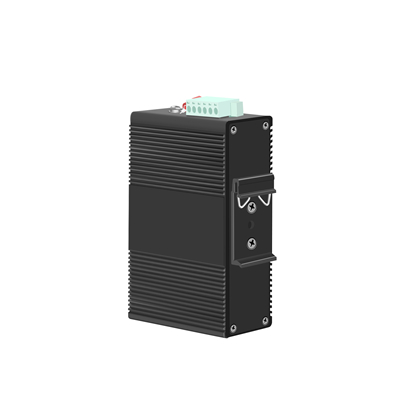

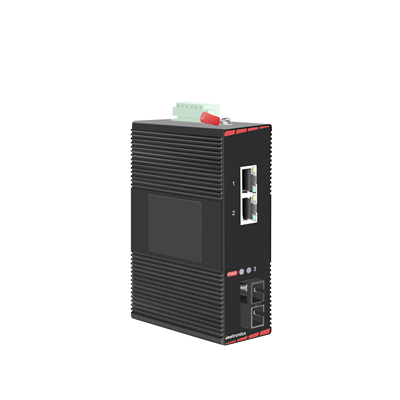

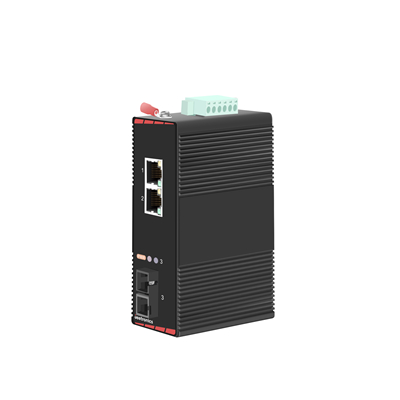

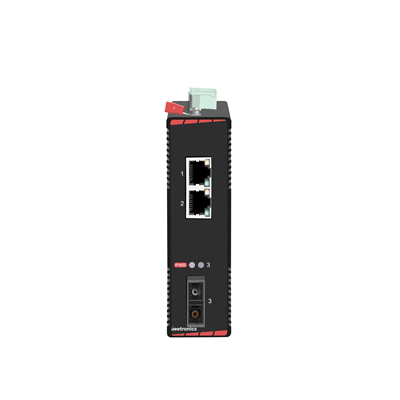

JTFA102-15S80

2x 10/100Base-TX to 1x 100Base-FX (1550nm SMF 80km Dual SC) Unmanaged Fast Ethernet Industrial Switch

JTFA102-15S80 is an unmanaged Fast Ethernet industrial Switch is equipped with 2x 10/100Base-TX and 1x 100Base-FX interfaces that provides reliable and cost-effective network connectivity and fiber extension in harsh industrial environments, It is specifically designed to fulfill industrial applications such as industrial automation, security, power/utility, oil and gas, mining and outdoor environment.



  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Complies with IEEE 802.3 ,IEEE 802.3u ,IEEE 802.3x
  • 2x 10/100Base-TX
  • 1x 100Base-FX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Redundant Power Design
  • Power Polarity Reverse Protection
  • Overload Current Protection
  • Extends fiber distance up to 80km
  • Operating Case Temperature : -40~75°C

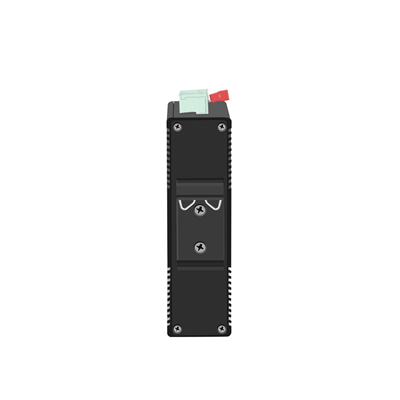

  • DIN-Rail or Wall Mountable
  • IP30 Corrosion resistant aluminum case

Data Rate 10/100Mbps
Device Type Unmanaged

Interface Characteristics

Copper Interface 2x 10/100Base-TX
Fiber Interface 1x 100Base-FX
Wavelength 1550nm
Media SMF
Distance 80km
Connector Dual SC
LED indicators PWR (power supply)
FL/A (optical link/action)
FDX (FX full duplex)
TL/A (twisted pairs link/action)
100 (100M transmission rate of twisted pairs)
FX (100M transmission rate of optical fiber)

Technology

Standards and Protocols IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Full duplex and flow control
Processing Type Store and Forward
Flow Control Half-duplex back-pressure and IEEE 802.3x full-duplex flow control

Power

Power Input DC 12~52V
PoE Standard /
PoE Power Budget /
Power Consumption <4W
Protection Overload current protection
Reverse polarity protection

Switch Properties

Switching Capacity 0.6G
Forwarding Rate 0.1488Mbps
MAC address table 1K
Packet Buffer 448K
Jumbo Frame 1536K
Delay <3μs

Physical

Casing Mat. Aluminum, IP30
Dimensions 118 x 86 x 39mm
Installation DIN-Rail
Environmental Operating temperature : -10~55°C
Storage Temperature: -40~85°C
Relative Humidity: 5% to 95% non-condensing

Regulatory

ISO Manufactured in ISO-9001 facility
Safety & Emission CE , FCC, RoHS
EMI FCC Part 15B Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
EMS EN 61000-6-2
EN 61000-4-2 (ESD Standards)
EN 61000-4-3 (Radiated RFI Standards)
EN 61000-4-4 (Burst Standards)
EN 61000-4-5 (Surge Standards)
EN 61000-4-6 (Induced RFI Standards)
EN 61000-4-8 (Magnetic Field Standards)
Stability IEC 60068-2-6 Fc (Vibration)
IEC 60068-2-27 Ea (Shock)
IEC 60068-2-32 Ed (Free fall w/package)

Realiability

MTBF >50,000Hrs
P/N Category Device Type Copper Interface Fiber Interface Wavelength Media Distance Connector Power Input
JTFA102-15S80 Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX 1550nm SMF 80km Dual SC DC 12~52V
JTFA102-P Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTFA102-13S02 Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX 1310nm MMF 2km Dual SC DC 12~52V
JTFA102-13S20 Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTFA102-13S40 Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTFA104-13S02 Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX 1310nm MMF 2km Dual SC DC 12~52V
JTFA104-13S20 Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTFA104-13S40 Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTFA104-15S80 Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX 1550nm SMF 80km Dual SC DC 12~52V
JTFA206-P Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX Based on SFP Spec Based on SFP Spec Based on SFP Spec SFP Port DC 12~52V
JTFA206-13S02 Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX 1310nm MMF 2km Dual SC DC 12~52V
JTFA206-13S20 Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX 1310nm SMF 20km Dual SC DC 12~52V
JTFA206-13S40 Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX 1310nm SMF 40km Dual SC DC 12~52V
JTFA206-15S80 Industrial Ethernet Switch Unmanaged  More 6x 10/100Base-TX 2x 100Base-FX 1550nm SMF 80km Dual SC DC 12~52V
JTFA102-B35S20 Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Tx1310nm/Rx1550nm SMF 20km Single SC DC 12~52V
JTFA102-B53S20 Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Tx1550nm/Rx1310nm SMF 20km Single SC DC 12~52V
JTFA102-B35S40 Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Tx1310nm/Rx1550nm SMF 40km Single SC DC 12~52V
JTFA102-B53S40 Industrial Ethernet Switch Unmanaged  More 2x 10/100Base-TX 1x 100Base-FX Tx1550nm/Rx1310nm SMF 40km Single SC DC 12~52V
JTFA104-B35S20 Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX Tx1310nm/Rx1550nm SMF 20km Single SC DC 12~52V
JTFA104-B53S20 Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX Tx1550nm/Rx1310nm SMF 20km Single SC DC 12~52V
JTFA104-B35S40 Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX Tx1310nm/Rx1550nm SMF 40km Single SC DC 12~52V
JTFA104-B53S40 Industrial Ethernet Switch Unmanaged  More 4x 10/100Base-TX 1x 100Base-FX Tx1550nm/Rx1310nm SMF 40km Single SC DC 12~52V
JTFA005 Industrial Ethernet Switch Unmanaged  More 5x 10/100Base-TX / / / / / DC 12~52V
JTFA008 Industrial Ethernet Switch Unmanaged  More 8x 10/100Base-TX / / / / / DC 12~52V
