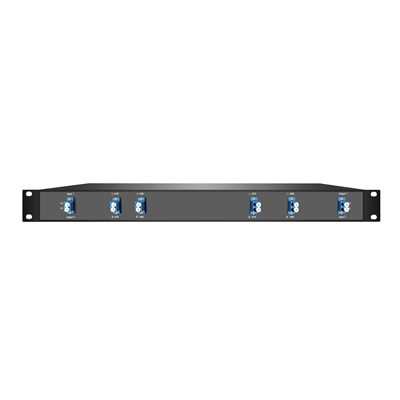

JCMX-XXXX-A02D

2 Channels CWDM OADM 1U Chassis / LGX Package Optional system 1270-1610nm Wavelength Optional

JCMX-XXXX-A02D is a 1U Chassis / LGX Package Optional packaged Dual Fiber CWDM OADM system. It is specifically designed to esaily add or drop 2 Ch CWDM 1270-1610nm traffic from a CWDM Stream. It is fully protocol transparent and to perfectly fulfill applications including 1G/10G/100G Ethernet, SDH/SONET, 1/2/4/8/16/32G Fibre Channel/FICON, CATV and FTTx.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Compliant to DWDM ITUT G.694.1 H Band 100GHz
  • Adding or droping of up to 2 CWDM wavelengths
  • Protocol transparent, support 1G, 10G, 100G etc
  • Low insertion loss
  • LC/UPC connectors
  • Passive, no electric power is required
  • High stability and reliability
  • 19" 1U Rackmount system
  • Custom design supported

Access Type Dual Fiber
Channels 2
EXP /
MON /
Packaging 1U Chassis / LGX Package Optional
Dimension 44x483x250mm mm
Insertion loss IL < 1.6 dB
Mux+Demux IL < 1.6 dB
Center Wavelength 1270-1610nm nm
Channel Spacing 20 GHz
Channel Flatness < 0.4 mm
Channel Bandwidth +/- 6.5 mm
Channel Uniformity < 1.0 dB
Adjacent channel isolation > 30 dB
Non adjacent channel isolation > 40 dB
Directivity > 55 dB
Return Loss > 50 dB
PDL < 0.15 dB
PMD < 0.1 ps
Wavelength thermal stability < 0.003 nm/°C
Insertion Loss thermal stability < 0.005 nm/°C
Power Handling < 500 mW
Operating temperature 0 ~ +70 °C
Storage temperature -40 ~ +85 °C
P/N Category Access Type EXP MON Channels Wavelength Packaging
JCMX-XXXX-A02D CWDM OADM Dual Fiber  More / / 2 1270-1610nm(Optional) 1U Chassis / LGX Package Optional
JCMX-XXXX-A04D CWDM OADM Dual Fiber  More / / 4 1270-1610nm(Optional) 1U Chassis / LGX Package Optional
JCMX-XXXX-A06D CWDM OADM Dual Fiber  More / / 6 1270-1610nm(Optional) 1U Chassis / LGX Package Optional
JCMX-XXXX-A08D CWDM OADM Dual Fiber  More / / 8 1270-1610nm(Optional) 1U Chassis / LGX Package Optional
