- Compliant to ITU G.694.2 and G.695
- Multiplexing of up to 18 CWDM wavelengths
- Protocol transparent, support 1G, 10G, 100G etc
- Low insertion loss
- LC/UPC connectors
- Passive, no electric power is required
- High stability and reliability
- 19" 1U Rackmount system
- Custom design supported
| Access Type | Dual Fiber |
| Channels | 18 |
| EXP | Optional |
| MON | Optional |
| Packaging | 1U Chassis |
| Dimension | 44x483x250mm | mm |
| Insertion loss IL | < 3.6 | dB |
| Mux+Demux IL | < 5.3 | dB |
| Center Wavelength | 1270-1610nm | nm |
| Channel Spacing | 20 | GHz |
| Channel Flatness | < 0.4 | mm |
| Channel Bandwidth | +/- 6.5 | mm |
| Channel Uniformity | < 1.0 | dB |
| Adjacent channel isolation | > 30 | dB |
| Non adjacent channel isolation | > 40 | dB |
| Directivity | > 55 | dB |
| Return Loss | > 50 | dB |
| PDL | < 0.15 | dB |
| PMD | < 0.1 | ps |
| Wavelength thermal stability | < 0.003 | nm/°C |
| Insertion Loss thermal stability | < 0.005 | nm/°C |
| Power Handling | < 500 | mW |
| Operating temperature | 0 ~ +70 | °C |
| Storage temperature | -40 ~ +85 | °C |
| P/N | Category | Access Type | EXP | MON | Channels | Wavelength | Packaging |
|---|---|---|---|---|---|---|---|

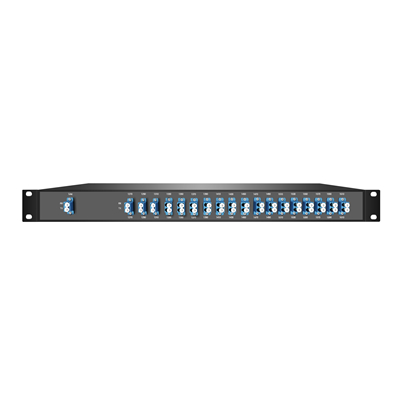

| JCMX-XXXX-18D | CWDM MUX/DEMUX | Dual Fiber More | Optional | Optional | 18 | 1270-1610nm(Optional) | 1U Chassis |
| JCMX-XXXX-02D | CWDM MUX/DEMUX | Dual Fiber More | Optional | Optional | 2 | 1270-1610nm(Optional) | 1U Chassis / LGX Package Optional |
| JCMX-XXXX-04D | CWDM MUX/DEMUX | Dual Fiber More | Optional | Optional | 4 | 1270-1610nm(Optional) | 1U Chassis / LGX Package Optional |
| JCMX-XXXX-08D | CWDM MUX/DEMUX | Dual Fiber More | Optional | Optional | 8 | 1270-1610nm(Optional) | 1U Chassis / LGX Package Optional |
| JCMX-XXXX-16D | CWDM MUX/DEMUX | Dual Fiber More | Optional | Optional | 16 | 1270-1610nm(Optional) | 1U Chassis |
