- Hot-Pluggable SFP Footprint
- Supports upto 6.144Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 40KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

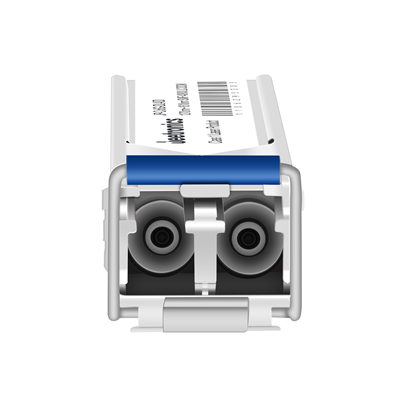

P/N | JP-Cx6G-DL40D |
Form Factor | SFP |
Standard & protocal | 6GBASE CWDM |
Data Rate | 6.144Gbps |

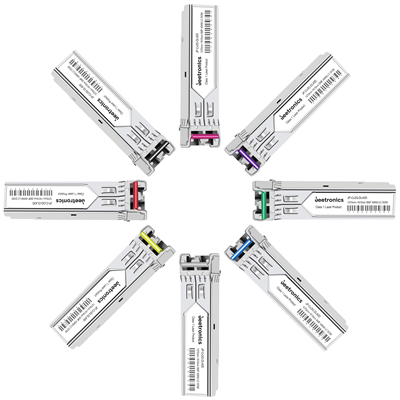

WaveLength | CWDM 1270nm~1610nm |
Media | SMF |
Reach | 40KM |
Interface | Duplex LC |
Tx Source | DFB |
Rx Source | PIN |
Tx Power | -4~+1dBm |
Rx Power | ≦-15dBm |
Temp. | Tc/Ti |
P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
---|---|---|---|---|---|---|---|---|
JP-Cx6G-DL40D | 6.144Gbps | CWDM 1270nm~1610nm More | 40KM | Duplex LC | SMF | -4~+1dBm | ≦-15dBm | Tc/Ti |
JP-Cx6G-DL80D | 6.144Gbps | CWDM 1270nm~1610nm More | 80KM | Duplex LC | SMF | 0~+4dBm | ≦-24dBm | Tc/Ti |
