- Hot-pluggable form-factor connectors
- Supports upto 40Gb/s Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link length Up to 7M on Copper Cable
- RoHS Compliant (lead free)
- Operating Case Temperature : 0~70℃
- Compliant with QSFP to QSFP MSA Specification
- Low power consumption

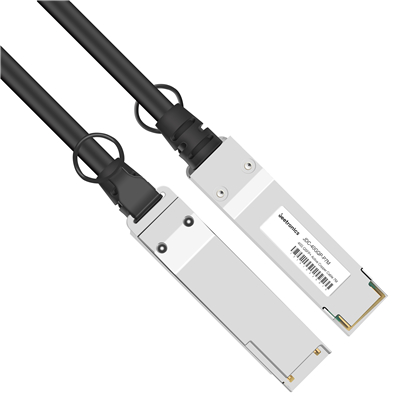

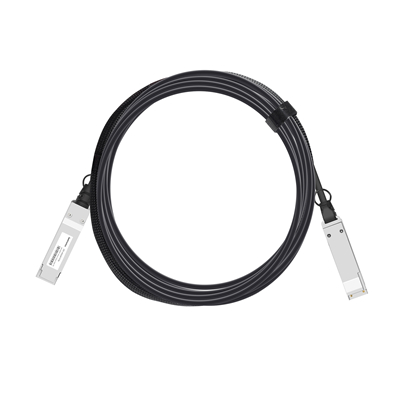

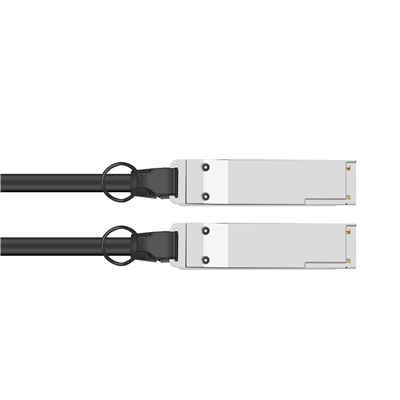

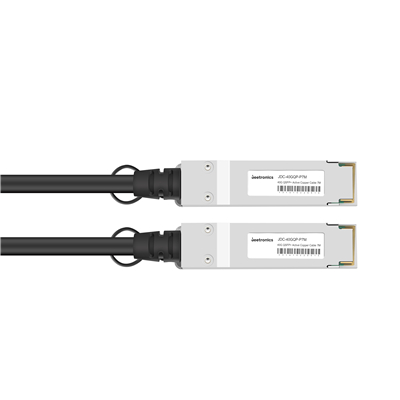

P/N | JDC-40GQP-P7M |
Data Rate | 40Gb/s |
Media | Copper |
Formfactor | QSFP to QSFP |
Cable Type | Passive |
AWG | 24 |
Length | 7M |
Opterating Temp. | 0~70℃ |
P/N | DataRate/Protocol | Media | Formfactor | Cable Type | AWG | Length | Opterating Temp. |
---|---|---|---|---|---|---|---|
JDC-40GQP-P7M | 40Gb/s | Copper More | QSFP to QSFP | Passive | 24 | 7M | 0~70℃ |
JDC-40GQP-P1M | 40Gb/s | Copper More | QSFP to QSFP | Passive | 30 | 1M | 0~70℃ |
JDC-40GQP-P2M | 40Gb/s | Copper More | QSFP to QSFP | Passive | 30 | 2M | 0~70℃ |
JDC-40GQP-P3M | 40Gb/s | Copper More | QSFP to QSFP | Passive | 30 | 3M | 0~70℃ |
JDC-40GQP-P4M | 40Gb/s | Copper More | QSFP to QSFP | Passive | 24 | 4M | 0~70℃ |
JDC-40GQP-P5M | 40Gb/s | Copper More | QSFP to QSFP | Passive | 26 | 5M | 0~70℃ |
