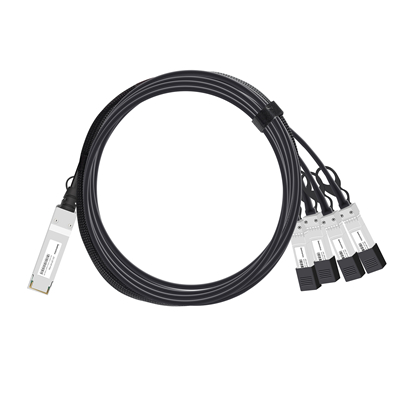

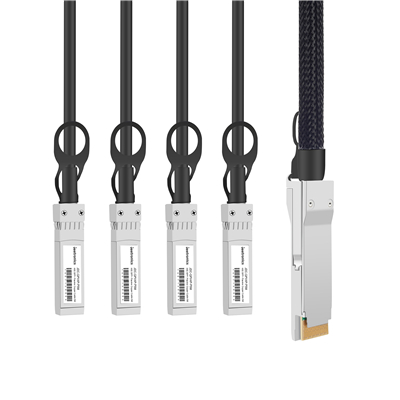

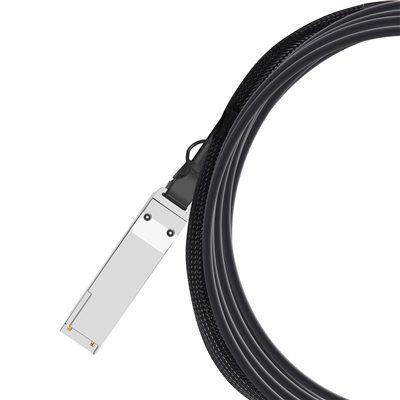

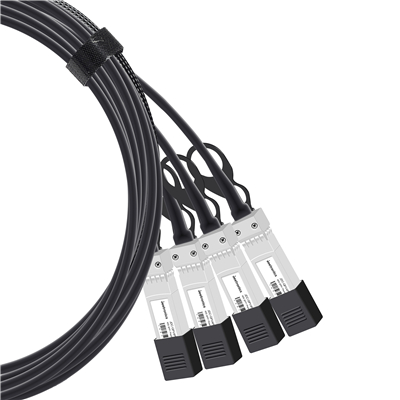

40G to 4x10G QSFP to 4SFP+ 5M 26AWG Direct Attach Twinax Breakout Copper Cable

JDC-QPV4P-P5M is a MSA compliant 40G to 4x10G QSFP to 4SFP+ Packaged Passive Copper Cable. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-pluggable form-factor connectors
  • Supports upto 40G to 4x10G Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link length Up to 5M on Copper Cable
  • RoHS Compliant (lead free)
  • Operating Case Temperature : 0~70℃
  • Compliant with QSFP to 4SFP+ MSA Specification
  • Low power consumption

P/N JDC-QPV4P-P5M
Data Rate 40G to 4x10G
Media Copper
Formfactor QSFP to 4SFP+
Cable Type Passive
AWG 26
Length 5M
Opterating Temp. 0~70℃
P/N DataRate/Protocol Media Formfactor Cable Type AWG Length Opterating Temp.
JDC-QPV4P-P5M 40G to 4x10G Copper  More QSFP to 4SFP+ Passive 26 5M 0~70℃
JDC-QPV4P-P1M 40G to 4x10G Copper  More QSFP to 4SFP+ Passive 30 1M 0~70℃
JDC-QPV4P-P2M 40G to 4x10G Copper  More QSFP to 4SFP+ Passive 30 2M 0~70℃
JDC-QPV4P-P3M 40G to 4x10G Copper  More QSFP to 4SFP+ Passive 30 3M 0~70℃
JDC-QPV4P-P4M 40G to 4x10G Copper  More QSFP to 4SFP+ Passive 26 4M 0~70℃
JDC-QPV4P-P7M 40G to 4x10G Copper  More QSFP to 4SFP+ Passive 24 7M 0~70℃
