- Hot-pluggable form-factor connectors
- Supports upto 40G to 4x10G Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link length Up to 3M on OM3 Cable
- RoHS Compliant (lead free)
- Operating Case Temperature : 0~70℃
- Compliant with QSFP to 4SFP+ MSA Specification
- Low power consumption

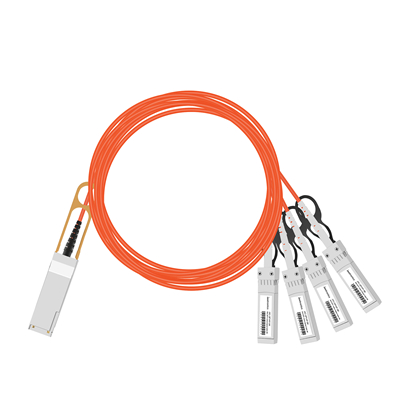

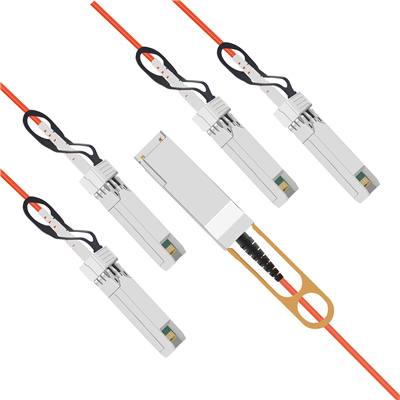

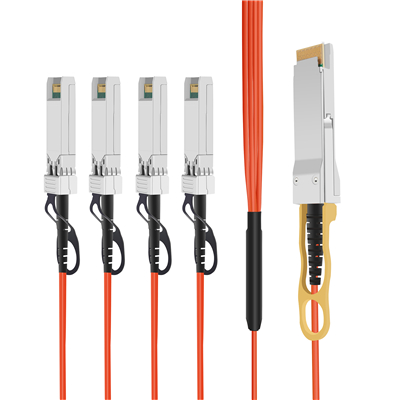

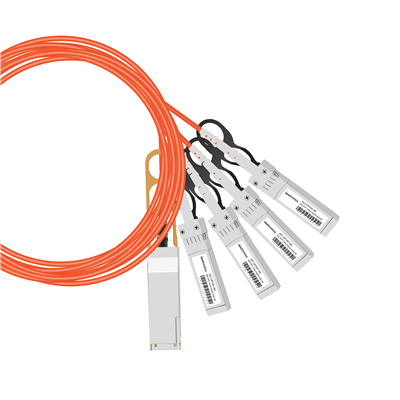

| P/N | JAC-QPV4P-3M |
| Data Rate | 40G to 4x10G |
| Media | OM3 |
| Formfactor | QSFP to 4SFP+ |
| Cable Type | Active |
| AWG | n/a |
| Length | 3M |
| Opterating Temp. | 0~70℃ |
| P/N | DataRate/Protocol | Media | Formfactor | Cable Type | AWG | Length | Opterating Temp. |
|---|---|---|---|---|---|---|---|
| JAC-QPV4P-3M | 40G to 4x10G | OM3 More | QSFP to 4SFP+ | Active | n/a | 3M | 0~70℃ |
| JAC-QPV4P-1M | 40G to 4x10G | OM3 More | QSFP to 4SFP+ | Active | n/a | 1M | 0~70℃ |
| JAC-QPV4P-2M | 40G to 4x10G | OM3 More | QSFP to 4SFP+ | Active | n/a | 2M | 0~70℃ |
| JAC-QPV4P-xxM | 40G to 4x10G | OM3 More | QSFP to 4SFP+ | Active | n/a | xxM(Custom Length) | 0~70℃ |
| Datasheet | Download |
| Manual | Download |
| Software | Download |
