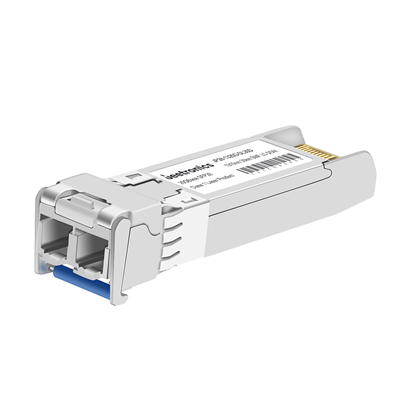

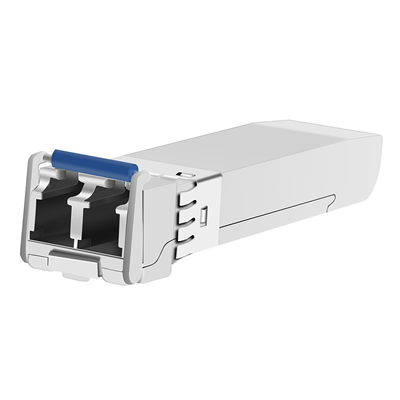

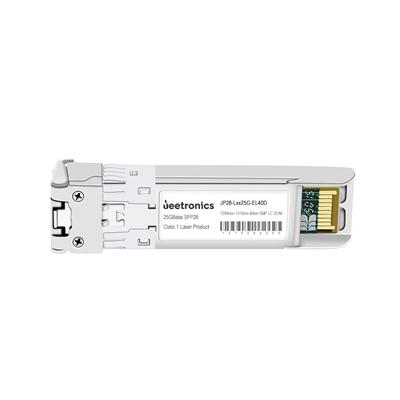

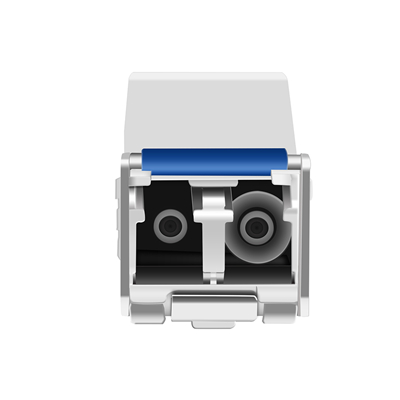

SFP28 25Gbps LAN-WDM 1294nm~1310nm SMF 40KM Duplex LC Optical Transceiver

JP28-Lxx25G-EL40D is a MSA compliant 25Gbps SFP28 Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • MORE
  • Hot-Pluggable SFP28 Footprint
  • Supports upto 25Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 40KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP28 MSA Specification
  • Low power consumption

P/N JP28-Lxx25G-EL40D
Form Factor SFP28
Standard & protocal 25GBASE ER
Data Rate 25Gbps
WaveLength LAN-WDM 1294nm~1310nm
Media SMF
Reach 40KM
Interface Duplex LC
Tx Source LWDM EML
Rx Source APD
Tx Power +2.0～+7.0dBm
Rx Power ≦-20.0dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JP28-Lxx25G-EL40D 25Gbps LAN-WDM 1294nm~1310nm  More 40KM Duplex LC SMF +2.0～+7.0dBm ≦-20.0dBm Tc/Ti
JP28-8525G-VL01D 25Gbps 850nm  More 100M Duplex LC MMF -7.6～+2.4dBm ≦-10.3dBm Tc/Ti
JP28-8525G-DL03D 25Gbps 850nm  More 300M Duplex LC MMF -7.0~+2.2dBm ≦-8.0dBm Tc/Ti
JP28-1325G-DL10D 25Gbps 1310nm  More 10KM Duplex LC SMF -7～+2dBm ≦-13.0dBm Tc/Ti
JP28-1325G-DL40D-FEC 25Gbps 1310nm  More 40KM(with FEC) Duplex LC SMF -3.0～+6.0dBm ≦-19.0dBm Tc/Ti
JP28-1325G-DL30D 25Gbps 1310nm  More 30km(without FEC) Duplex LC SMF -3.0～+6.0dBm ≦-19.0dBm Tc/Ti
JP28-1325G-EL40D 25Gbps 1310nm  More 40KM Duplex LC SMF -3.0～+6.0dBm ≦-19.0dBm Tc/Ti
