- Hot-pluggable form-factor connectors
- Supports upto 25Gb/s Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link length Up to 1M on Copper Cable
- RoHS Compliant (lead free)
- Operating Case Temperature : 0~70℃
- Compliant with SFP28 to SFP28 MSA Specification
- Low power consumption

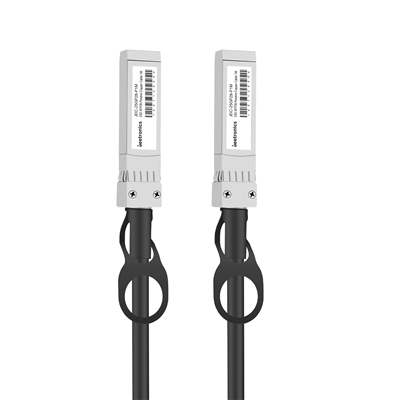

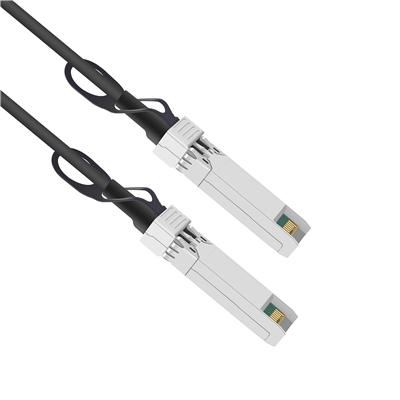

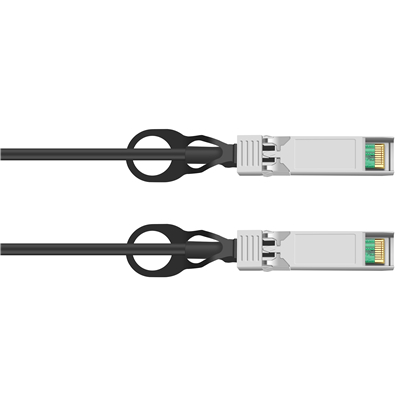

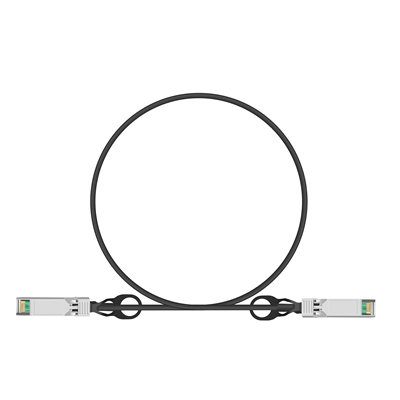

| P/N | JDC-25GP28-P1M |
| Data Rate | 25Gb/s |
| Media | Copper |
| Formfactor | SFP28 to SFP28 |
| Cable Type | Passive |
| AWG | 30 |
| Length | 1M |
| Opterating Temp. | 0~70℃ |
| P/N | DataRate/Protocol | Media | Formfactor | Cable Type | AWG | Length | Opterating Temp. |
|---|---|---|---|---|---|---|---|
| JDC-25GP28-P1M | 25Gb/s | Copper More | SFP28 to SFP28 | Passive | 30 | 1M | 0~70℃ |
| JDC-25GP28-P2M | 25Gb/s | Copper More | SFP28 to SFP28 | Passive | 30 | 2M | 0~70℃ |
| JDC-25GP28-P3M | 25Gb/s | Copper More | SFP28 to SFP28 | Passive | 30 | 3M | 0~70℃ |
| JDC-25GP28-P4M | 25Gb/s | Copper More | SFP28 to SFP28 | Passive | 26 | 4M | 0~70℃ |
| JDC-25GP28-P5M | 25Gb/s | Copper More | SFP28 to SFP28 | Passive | 26 | 5M | 0~70℃ |
| Datasheet | Download |
| Manual | Download |
| Software | Download |
