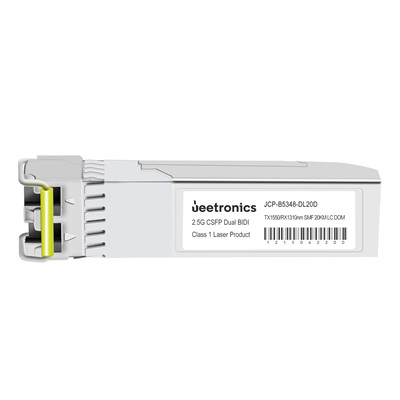

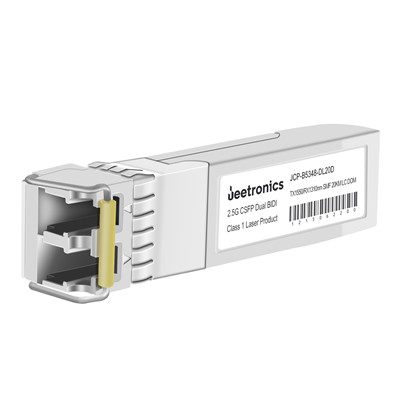

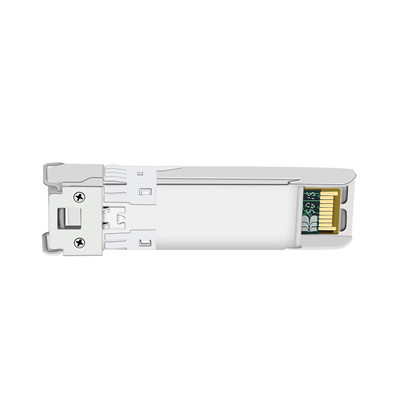

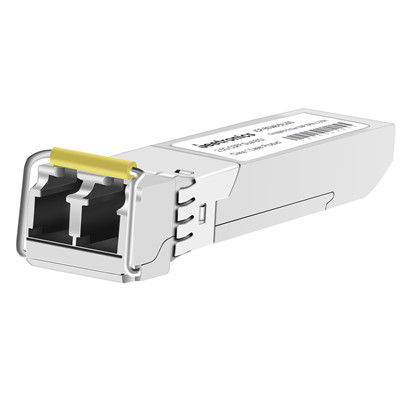

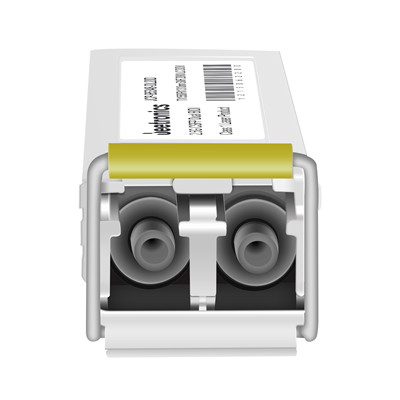

CSFP 2.5Gbps TX1550/RX1310nm SMF 20KM Duplex LC Optical Transceiver

JCP-B5348-DL20D is a MSA compliant 2.5Gbps CSFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable CSFP Footprint
  • Supports upto 2.5Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 20KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with CSFP MSA Specification
  • Low power consumption

P/N JCP-B5348-DL20D
Form Factor CSFP
Standard & protocal 2.5GBASE 2BX
Data Rate 2.5Gbps
WaveLength TX1550/RX1310nm
Media SMF
Reach 20KM
Interface Duplex LC
Tx Source DFB
Rx Source PIN
Tx Power -5~0dBm
Rx Power ≦-18dBm
Temp. Tc/Ti
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JCP-B5348-DL20D 2.5Gbps TX1550/RX1310nm  More 20KM Duplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
JCP-B3548-FL20D 2.5Gbps TX1310/RX1550nm  More 20KM Duplex LC SMF -5~0dBm ≦-18dBm Tc/Ti
