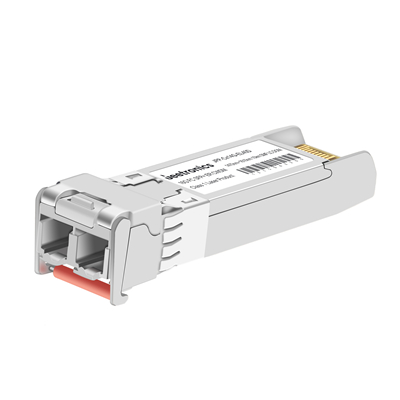

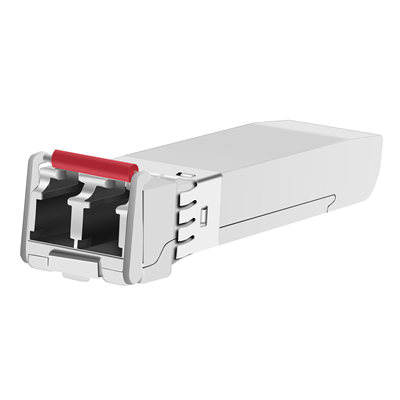

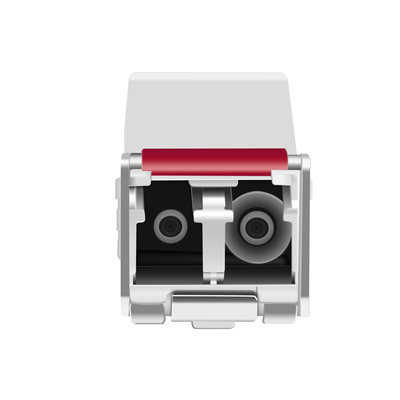

SFP+ 14Gbps CWDM 1470nm~1610nm SMF 40KM Duplex LC Optical Transceiver

JPP-Cx14G-EL40D is a MSA compliant 14Gbps SFP+ Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable SFP+ Footprint
  • Supports upto 14Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 40KM on SMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with SFP+ MSA Specification
  • Low power consumption

P/N JPP-Cx14G-EL40D
Form Factor SFP+
Standard & protocal 16GBASE ER CWDM
Data Rate 14Gbps
WaveLength CWDM 1470nm~1610nm
Media SMF
Reach 40KM
Interface Duplex LC
Tx Source EML
Rx Source PIN
Tx Power -1~+3dBm
Rx Power ≦-14.0dBm
Temp. Tc
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JPP-Cx14G-EL40D 14Gbps CWDM 1470nm~1610nm  More 40KM Duplex LC SMF -1~+3dBm ≦-14.0dBm Tc
