- Hot-Pluggable SFP Footprint
- Supports upto 1.25Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 80KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP MSA Specification
- Low power consumption

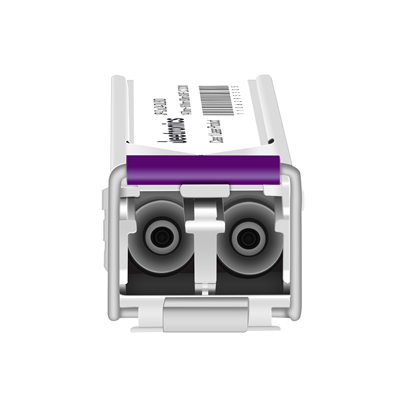

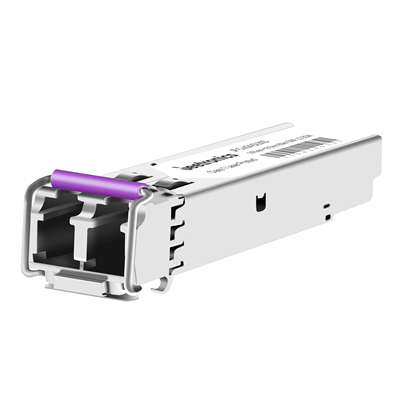

| P/N | JP-Cxx24-DL80D |
| Form Factor | SFP |
| Standard & protocal | 1000BASE CWDM |
| Data Rate | 1.25Gbps |
| WaveLength | CWDM 1470nm~1610nm |
| Media | SMF |
| Reach | 80KM |
| Interface | Duplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | 0~+4dBm |
| Rx Power | ≦-24dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JP-Cxx24-DL80D | 1.25Gbps | CWDM 1470nm~1610nm More | 80KM | Duplex LC | SMF | 0~+4dBm | ≦-24dBm | Tc/Ti |
| JP-Cxx24-DL40D | 1.25Gbps | CWDM 1470nm~1610nm More | 40KM | Duplex LC | SMF | -5~0dBm | ≦-24dBm | Tc/Ti |
| JP-Cxx24-DL120D | 1.25Gbps | CWDM 1470nm~1610nm More | 120KM | Duplex LC | SMF | 0~+4dBm | ≦-32dBm | Tc/Ti |
