- Hot-Pluggable SFP+ Footprint
- Supports upto 10Gbps Data Rates
- Single 3.3V Power Supply and Industry Low Power dissipation
- Max link lenght Up to 20KM on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
- Compliant with SFP+ MSA Specification
- Low power consumption

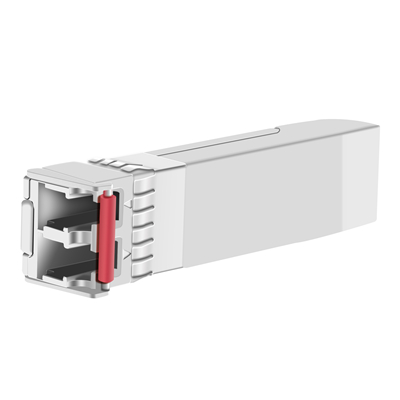

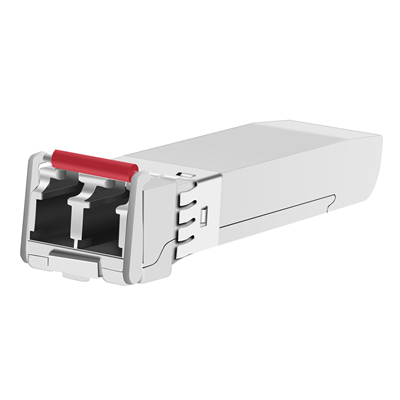

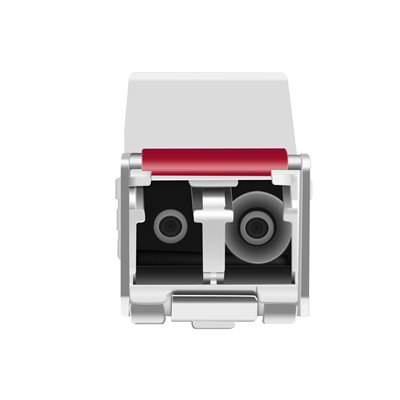

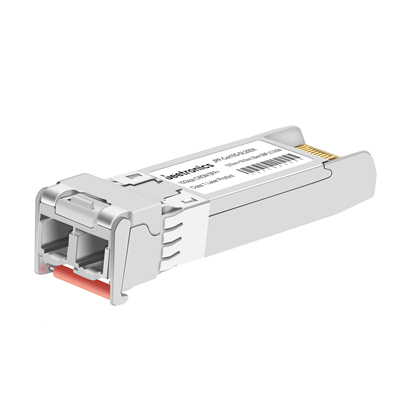

| P/N | JPP-Cxx10G-DL20DX |
| Form Factor | SFP+ |
| Standard & protocal | 10GBASE CWDM |
| Data Rate | 10Gbps |
| WaveLength | CWDM 1270nm~1610nm |
| Media | SMF |
| Reach | 20KM |
| Interface | Duplex LC |
| Tx Source | DFB |
| Rx Source | PIN |
| Tx Power | ≥-1dBm |
| Rx Power | ≦-15dBm |
| Temp. | Tc/Ti |
| P/N | DataRate/Protocol | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
|---|---|---|---|---|---|---|---|---|
| JPP-Cxx10G-DL20DX | 10Gbps | CWDM 1270nm~1610nm More | 20KM | Duplex LC | SMF | ≥-1dBm | ≦-15dBm | Tc/Ti |
| JPP-Cxx10G-DL10D | 10Gbps | CWDM 1270nm~1610nm More | 10KM | Duplex LC | SMF | -4~+4dBm | ≦-14dBm | Tc/Ti |
| JPP-Cxx10G-DL20D | 10Gbps | CWDM 1270nm~1610nm More | 20KM | Duplex LC | SMF | -1~+5.5dBm | ≦-15dBm | Tc/Ti |
| JPP-Cxx10G-DL40D | 10Gbps | CWDM 1270nm~1450nm More | 40KM | Duplex LC | SMF | 0~+5.5dBm | ≦-15dBm | Tc/Ti |
| JPP-Cxx10G-EL40D | 10Gbps | CWDM 1470nm~1610nm More | 40KM | Duplex LC | SMF | 0~+5.5dBm | ≦-16dBm | Tc/Ti |
| JPP-Cxx10G-DL60D | 10Gbps | CWDM 1270nm~1450nm More | 60KM | Duplex LC | SMF | +1~+5.5dBm | ≦-20dBm | Tc/Ti |
| JPP-Cxx10G-EL80D | 10Gbps | CWDM 1470nm~1610nm More | 80KM | Duplex LC | SMF | 0~+5.5dBm | ≦-23dBm | Tc/Ti |
| JPP-Cxx10G-DL10DX | 10Gbps | CWDM 1270nm~1610nm More | 10KM | Duplex LC | SMF | ≥-4dBm | ≦-15dBm | Tc/Ti |
| JPP-Cxx10G-DL40DX | 10Gbps | CWDM 1270nm~1610nm More | 40KM | Duplex LC | SMF | ≥0dBm | ≦-16dBm | Tc/Ti |
| JPP-Cxx10G-EL60DX | 10Gbps | CWDM 1270nm~1450nm More | 60KM | Duplex LC | SMF | ≥+1dBm | ≦-20dBm | Tc/Ti |
| JPP-Cxx10G-EL80DX | 10Gbps | CWDM 1470nm~1610nm More | 80KM | Duplex LC | SMF | ≥0dBm | ≦-23dBm | Tc/Ti |
