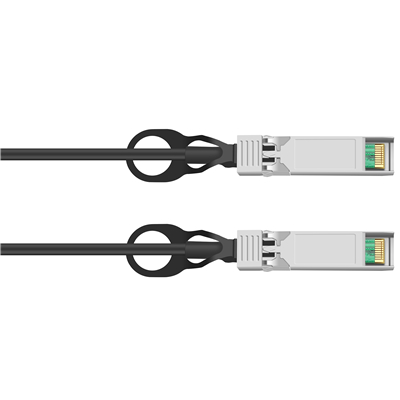

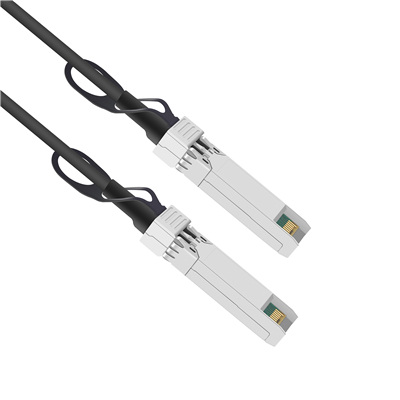

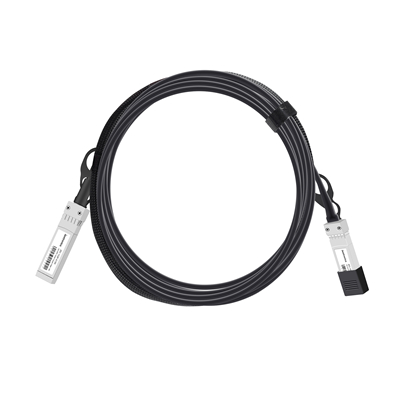

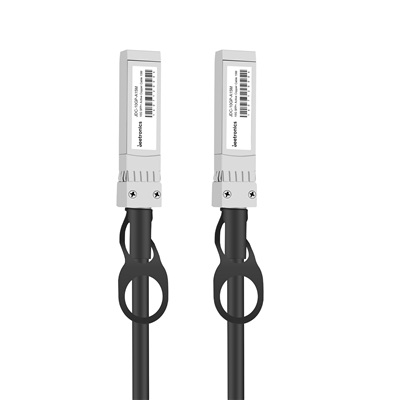

10Gb/s SFP+ to SFP+ 15M 24AWG Direct Attach Twinax Copper Cable

JDC-10GP-A15M is a MSA compliant 10Gb/s SFP+ to SFP+ Packaged Active Copper Cable. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-pluggable form-factor connectors
  • Supports upto 10Gb/s Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link length Up to 15M on Copper Cable
  • RoHS Compliant (lead free)
  • Operating Case Temperature : 0~70℃
  • Compliant with SFP+ to SFP+ MSA Specification
  • Low power consumption

P/N JDC-10GP-A15M
Data Rate 10Gb/s
Media Copper
Formfactor SFP+ to SFP+
Cable Type Active
AWG 24
Length 15M
Opterating Temp. 0~70℃
P/N DataRate/Protocol Media Formfactor Cable Type AWG Length Opterating Temp.
JDC-10GP-A15M 10Gb/s Copper  More SFP+ to SFP+ Active 24 15M 0~70℃
JDC-10GP-A1M 10Gb/s Copper  More SFP+ to SFP+ Active 30 1M 0~70℃
JDC-10GP-A2M 10Gb/s Copper  More SFP+ to SFP+ Active 30 2M 0~70℃
JDC-10GP-A3M 10Gb/s Copper  More SFP+ to SFP+ Active 30 3M 0~70℃
JDC-10GP-A4M 10Gb/s Copper  More SFP+ to SFP+ Active 24 4M 0~70℃
JDC-10GP-A5M 10Gb/s Copper  More SFP+ to SFP+ Active 28 5M 0~70℃
JDC-10GP-A7M 10Gb/s Copper  More SFP+ to SFP+ Active 28 7M 0~70℃
JDC-10GP-A10M 10Gb/s Copper  More SFP+ to SFP+ Active 28 10M 0~70℃
JDC-10GP-A12M 10Gb/s Copper  More SFP+ to SFP+ Active 24 12M 0~70℃
