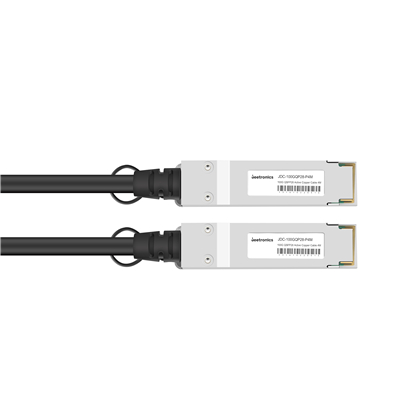

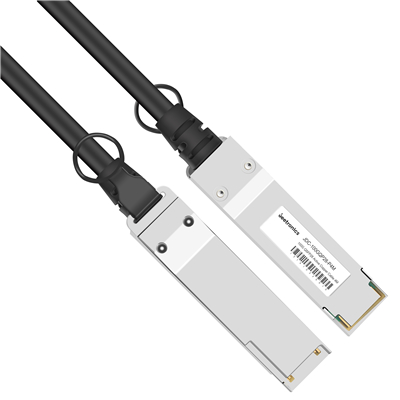

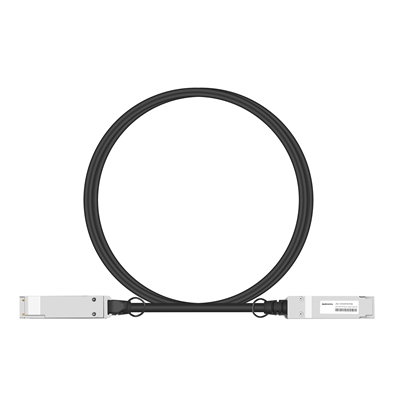

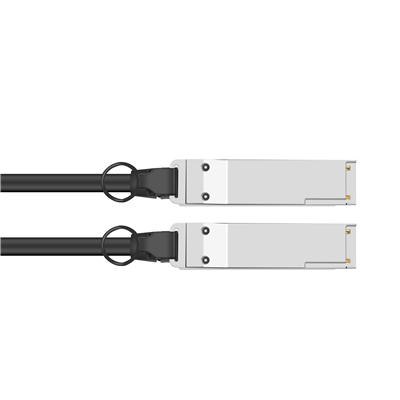

100Gb/s QSFP28 to QSFP28 4M 24AWG Direct Attach Twinax Copper Cable

JDC-100GQP28-P4M is a MSA compliant 100Gb/s QSFP28 to QSFP28 Packaged Passive Copper Cable. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-pluggable form-factor connectors
  • Supports upto 100Gb/s Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link length Up to 4M on Copper Cable
  • RoHS Compliant (lead free)
  • Operating Case Temperature : 0~70℃
  • Compliant with QSFP28 to QSFP28 MSA Specification
  • Low power consumption

P/N JDC-100GQP28-P4M
Data Rate 100Gb/s
Media Copper
Formfactor QSFP28 to QSFP28
Cable Type Passive
AWG 24
Length 4M
Opterating Temp. 0~70℃
P/N DataRate/Protocol Media Formfactor Cable Type AWG Length Opterating Temp.
JDC-100GQP28-P4M 100Gb/s Copper  More QSFP28 to QSFP28 Passive 24 4M 0~70℃
JDC-100GQP28-P1M 100Gb/s Copper  More QSFP28 to QSFP28 Passive 30 1M 0~70℃
JDC-100GQP28-P2M 100Gb/s Copper  More QSFP28 to QSFP28 Passive 30 2M 0~70℃
JDC-100GQP28-P3M 100Gb/s Copper  More QSFP28 to QSFP28 Passive 30 3M 0~70℃
JDC-100GQP28-P5M 100Gb/s Copper  More QSFP28 to QSFP28 Passive 26 5M 0~70℃
