Home > Active Pluggable Transceivers > CFP/CFP2/CFP4 > 100G CFP > JCF-85100G-VM01D
JCF-85100G-VM01D JCF-85100G-VM01D JCF-85100G-VM01D
JCF-85100G-VM01D
JCF-85100G-VM01D
JCF-85100G-VM01D

JCF-85100G-VM01D

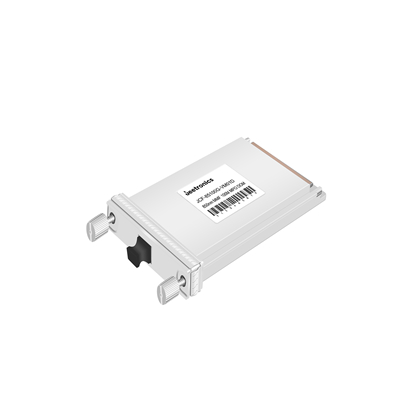

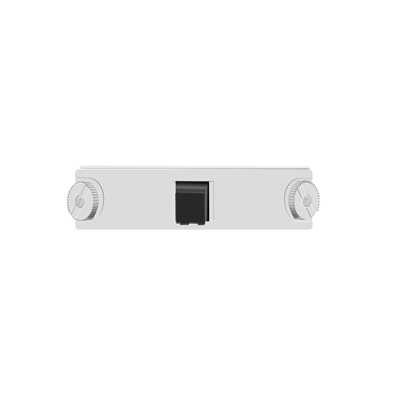

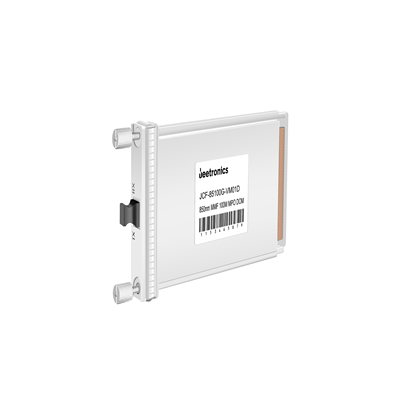

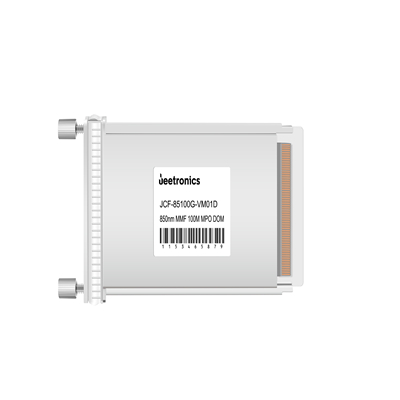

CFP 100Gbps 850nm MMF 100M MPO Optical Transceiver

JCF-85100G-VM01D is a MSA compliant 100Gbps CFP/CFP2/CFP4 Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.

  • FEATURES
  • SPECIFICATIONS
  • ORDERING INFORMATION
  • more
  • Hot-Pluggable CFP Footprint
  • Supports upto 100Gbps Data Rates
  • Single 3.3V Power Supply and Industry Low Power dissipation
  • Max link lenght Up to 100M on MMF Fiber
  • Class 1 Laser Safety Compliant
  • RoHS 6 compliant (lead free)
  • Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
  • Compliant with CFP MSA Specification
  • Low power consumption

P/N JCF-85100G-VM01D
Form Factor CFP
Standard & protocal 100GBASE SR10
Data Rate 100Gbps
WaveLength 850nm
Media MMF
Reach 100M
Interface MPO
Tx Source VCSEL
Rx Source PIN
Tx Power -7.6~+2.4dBm
Rx Power ≦-9.9dBm
Temp. Tc
P/N DataRate/Protocol WaveLength Reach Interface Media Tx Power Rx Power Temp.
JCF-85100G-VM01D 100Gbps 850nm  More 100M MPO MMF -7.6~+2.4dBm ≦-9.9dBm Tc
JCF-L100G-DL10D 100Gbps LAN-WDM 1294nm~1310nm  More 10KM Duplex LC SMF -4.3~+4.5dBm ≦-8.6dBm Tc
